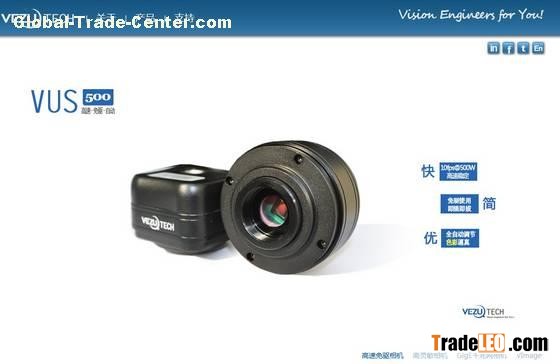

VUS500 is the first driverless camera in VezuTech. It is designed for those who have no much experience in microscopy imaging. This camera featured of easy-operation, high speed, and good color reproduction. It is a good choice for education, material analysis, industial inspection, machine vision, etc.

Features:
1. Free Driver. No driver needed in the installation, easy operation.
2. Built-in automatic exposure and white balance algorithms.
3. High speed. 10fps at full resolution, almost twice than US500.
4. Good price.
Defects:
only available with WDM interface now.

Model VUS500, Free Driver
Sensor 1/2.5'' Aptina MT9P001, Color, CMOS
Sensor Resolution 2592x1944, 5Mpix
Pixel Size 2.2umx2.2um
Sensitivity 1.4V/lux-sec 550nm
A/D Conversion 12bit
S/N Ratio 40.5dB
Exposure Time 0.083-378ms
frame Rate 10fps@2592x1944;
15fps@2048x1536
40fps@1024x768
Spectral Response 390-750nm
Readout Noise 8 e-
Scan Mode Progressive Scan
Shutter Electronic
Optical Interface C/CS mount
Data Interface USB2.0 (480 Mbit/sec)
Power Supply DC 5V
Power Consumption approx. 2W
Software VIMAGE Lite (standard)
VIMAGE Pro (optional)
Operation System Windows 2000/ XP / Vista / Win7/ Win8 (32bit/64bit)
