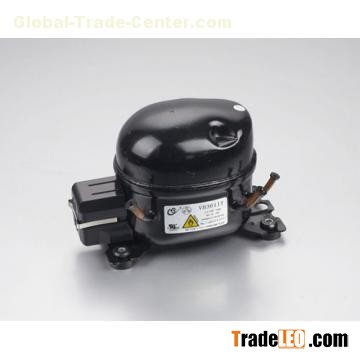

VB3611Y, it is suitable for water dispensers, ice-makers, small refrigerators. It could be changed according to customer`s requirements. Our engineers would provide their best suggestions for all of customers.
In order to ensure the safety, the R600a charging volume should not exceed 150g. The refrigerant 600a would be ignited in case its bulk in the air reaches 1.98% to 8.5% (Explosive LET and Explosive UEL).
The information about VB3611Y in more details is located in the table bellows.
| Characteristic | Value |
| Approve | UL |
| Refrigerant | R600a |
| Motor Type | RSIR |
| Cooling | Static Cooling |
| Throttle | Capillary |
| Application | LBP |
| Displacement | 3.6cm3 |
| Capacity | 65W |
| Input Power | 48W |
| Current | 0.67A |
| COP(W/W) | 1.35 |
| Working Voltage Range | 103V~127V |
| Oil Style | Mineral oil |
| Oil Value | 15010 ml |
| Weight(with oil) | 5kg |
| Quantity per pack format | 120PCS |
| Diameter of suction tube(inner diameter) | φ6.2mm |
| Diameter of discharge tube(inner diameter) | φ5.1mm |
| Diameter of access tube(inner diameter) | φ6.2mm |
| Material of suction.access.discharge tubes | Cu-plated steel |
| Noise | 38dB(A) (GB/T9098-2008) |
| vibration | 0.5m/s2 |
| Shielding gas | Dry air 1.3~1.7bar(dew point -60°C)) |
| Overload Protector | DRB18N61A1 |
| PTC Starter | QP2-4R7 |
