Introduction

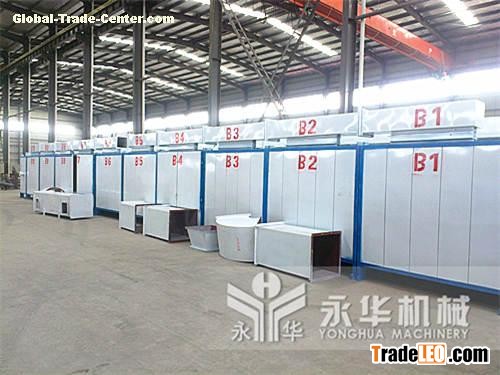

Mesh belt dryer is also named band dryer, it is a common continuous drying equipment, which can be widely used in metallurgy, building materials, ceramics, fertilizers, chemicals, food, medicine and other industries, and mesh belt dryer is also an ideal drying equipment for food and vegetables processing. Especially suitable for drying flaky material which has better ventilation, strip, granular materials; For paste materials, it can be dried after pelletized or extruded by the forming mechanism.

Technical Parameters

Model: HJWD20

Width of Mesh Belt: 2000

Dry Length: 10-26m

Feeding Length: 12-30m

Transmission Length: 1.5m

Drying Surface: 20-260m2

Transmission Power: 1.5-4kw

Layer: 1-5

Inter layer Spacing: 400-600mm

Carrying Capacity: 90-200Kg/m2

Operating Temperature: Carbon Steel≤400 C°, Stainless Steel≤600 C°

Evaporation Intensity: 5-20kg water/m2.h

Heating Source: Hot wind, Electricity, Steam

Operating Speed: 0.06-1m/min
