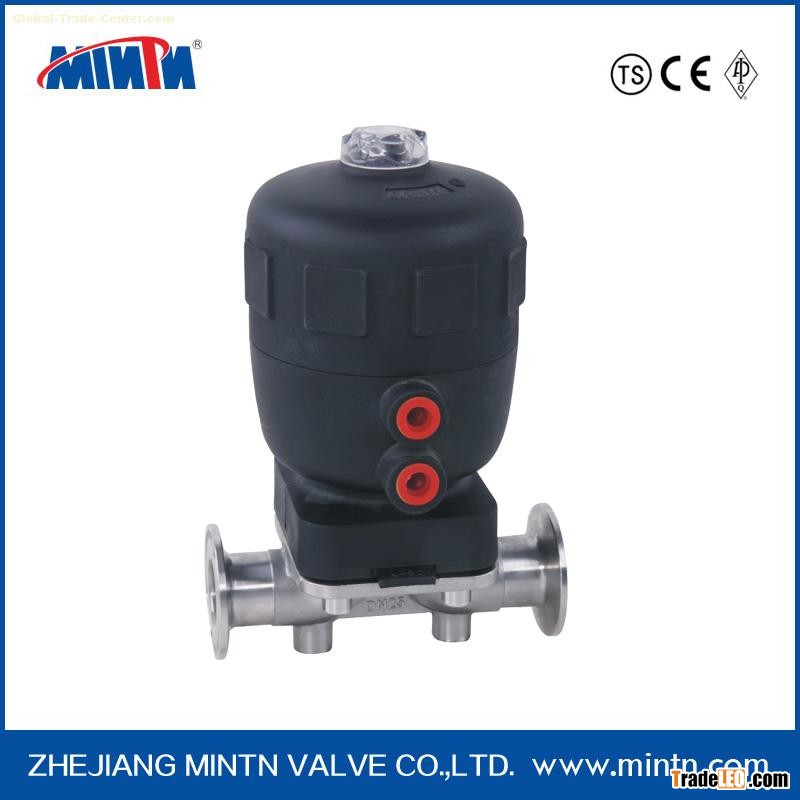

Technical data:

Driving way：Pneumatic，normally closed（1），normally open（2），and double direction（3）

Useful：Pneumatic actuator D applied to pass body，Pneumatic actuator T applied to pass body and multipass body

Max pressure：10bar（diaphragm is EPDM or FPM）6bar（diaphragm is PTFE, one side shall be used）

Max pressure：150℃，（According to the conditions of use）

Control pressure：4-6bar（control way1），3-4bar（control way2to3）

Diaphragm material：Stainless steel1.4435=316L

Connection way：Tri-clamp connection ,Other connection way：Welding，flange，thread

Manufacturing standard：GB、DIN、ISO、SMS

Applications:

Beer& Drink  Machinery

Pharmacy& Medical Equipment

Disinfection
