Brand:zx
Model:115-208
MOQ:1 Pieces

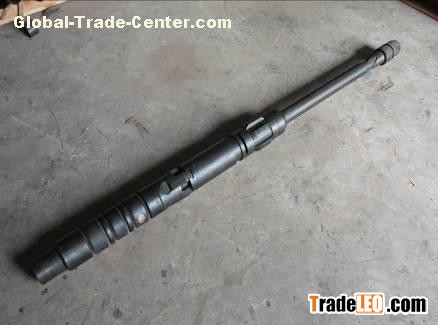

This economical Compression packer is for wells where sufficient setdown weight is available to utilize a set down packer.
This packer can be used in water flood, oil production or treating applications.
| Type
| Y211-102 | Y211-115 | Y211-150 | Y211-208 |
| Total lengt（mm） | 1873 | 2068 | 2066 | 2438 |
| Max OD（mm） | 102 | 115 | 150 | 208 |
| Min OD（mm） | 42 | 48 | 61 | 76 |
| Setting force（KN） | 80-100 | 80-100 | 80-100 | 120-140 |
| Working pressure difference（MPa） | Up25 Down8 | Up25 Down8 | Up25 Down8 | Up25 Down8 |
| Working temperature（℃） | 120 | 120 | 120 | 120 |
| Suitable casing ID（mm） | 107-115.8 | 117.7-132 | 158-166 | 221-228.5 |
| Two end connection threads | 27/8TBG | 27/8TBG | 27/8TBG | 31/2TBG |
