Electric Lock,Electric Magnetic Lock, Electromagnetic Lock for 280kg Door Access Control System (YET-CL280)
280kg Door Access Control System Electric Magnetic Lock
Electromagnetic lock,Magnetic lock,electric strike,electric bolt lock,electric control lock,glass door magnetic lock,magnetic cabinet lock
Magnetic Lock electric magnetic lock
Holding power: 280kg
Waterproof Electromagnetic lock
Power-on to lock, Power-off to open

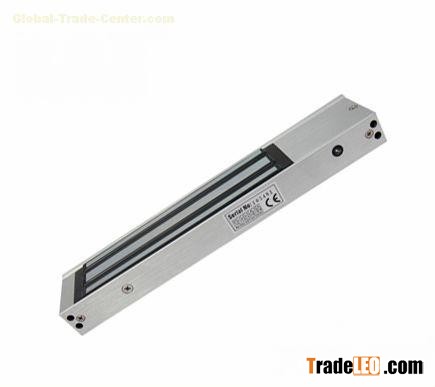

YET-CL280 Hanging Type Electromagnetic Lock

Electromagnetic Lock fitting for all kinds of doors.
Dimension: 238 * 47 *28mm
Signal output(door status detector)function is customizable.

Technical Parameters:
1. Holding Force: 280kg(600Lbs)
2. Voltage: 12/24VDC+10%
3. Current Draw: 12V/500mA 24V/250mA
4. Suitable for: Wooden door, Glass door, metal door, Fireproof door
5. Surface Temp: ≤ +20° C
6. Operating Temp: 10~+55° C(14-131F)
7. Suitable Humidity: 0~90%(non-comdensing)
8. Finishes for Shell: Anodized alninum
9. Finishes for Magnetic: Zinc
10. Finishes for Armature: Zinc
11. Safety mode: Power-on to lock, Power-off to open.
