Electroplated diamond grinding wheel, electroplated diamond grinding disc, electroplated diamond cutting wheel, electroplated diamond grooving wheel, electroplated diamond grinding mounted points, electroplated diamond burs

-      Brand: More Super Hard

-      Bonding Agent: Electroplated

-      Type: Grinding wheel, Polishing wheel, Grooving wheel, Cutting wheel

-      Type Code: 1A1, 1V1, 1EE1, 1FF1, 3A1, 11A2, 6A9, 14A1,14A1R,11V9, 11C9, 4A2, 6A1,6A2, 12A2, 9A3, 1F1,12V2, 1L1, 14EE1, 4B1, 14E1, 4A2P, 11B2, 6A2T, 11V2, 9A1, 1A1R, 1F1, 1A8, 9A1, 9A1B,3K1, 1A1W, 4V2, 1A3, 1A2T, 1A2, 12C9, 14E6Q, etc.

-      Material: Diamond, CBN

-      Size: D. 5-500mm; T. 5-40mm; H. 10-127mm.

-      Line speed: 35~80 (M/S)

-      Grit: 30#~320# (D711-D46)

-      Application: Glass grinding, Steel Cutting, Steel grooving, Ceramic grinding, Stone cutting, Stone Carving, Ceramic tiles cutting

-      Application Industry: Jewelry, Automobile, Aerospace , metal processing

-      Certification: ISO 9001:2000

-      Packing: Carton box with foam box. (Gift package is available)

-      MOQ: 5 pieces

-      Delivery Time: 5—10 Days

-      Sample: Available

Contact Owen for more details, via “owen @ moresuperhard.com”

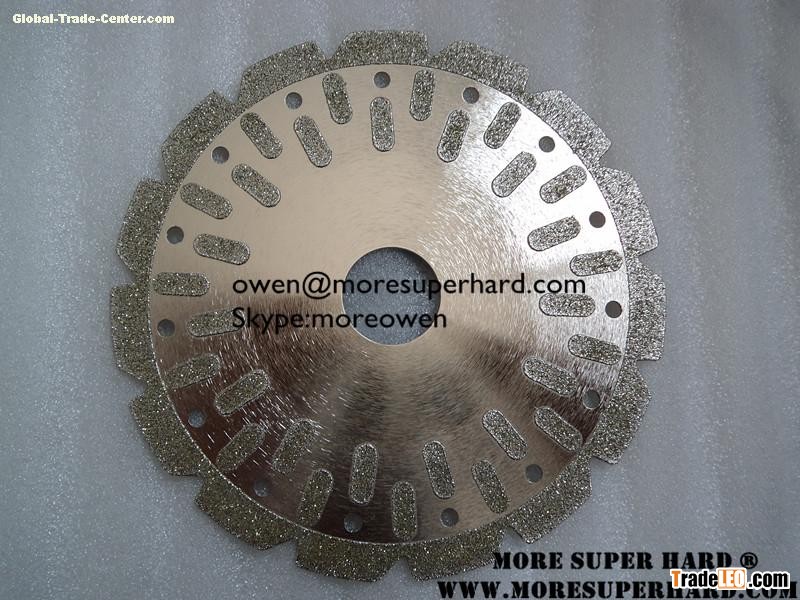

Features of Electroplated diamond cutting wheel:

-        Larger depth of grinding possible, which has not been achieved with the conventional bond wheels.  This means substantial increase in the grinding removal of work per unit time.

-        Large space functioning as a chip pocket during grinding and smooth discharge of chips, which in turn prevents clogging.

-        Minimization of any cutting sound and spindle loading current by controlling the contact area between the work and wheel, thereby contributing to energy conservation.

Application of Electroplated diamond cutting wheel:

-        Used for surface grinding of hard and brittle nonmetals such as optical glass, jewel, stones, ceramic.

-        Deep grinding and molding grinding of hard carbide products and some metals.

-        Steel cutting & grooving, ceramic cutting & carving

Product Range:

-      Vitrified/Ceramic bond diamond & CBN tools

-      Resin bond diamond & CBN tools

-      Electroplated diamond & CBN tools

-      metal diamond & CBN tools

-      PCD/PCBN cutting tools, milling tools, drilling tools, reamers, boring tools

-      PDC drilling tools, PDC drill bits, PDC drill bit inserts

-      TSP Polycrystalline diamond, TSP inserts

-      CVD diamond plate

Please provide us details when you order, For example,

Product needed: Electroplated diamond grinding wheel

1) Diameter   (25, 40,100,200,300…750mm)

2) Hole/state bore dimension

3) Thickness   (nth="5" w:st="on" year="2004">4/5/6/8/10/…40/50/60mm)

4) Shape (1A1 /1A1R/1A8/1A1W/1L1/1F1/6A2/12A2/11V9/4A1/14A1…)

5) Grit size (16/18, 18/20…40/45,80/100…325/400. In GB or ISO standard)

6) Other request

Contact Owen for more details, via “owen @ moresuperhard.com”
