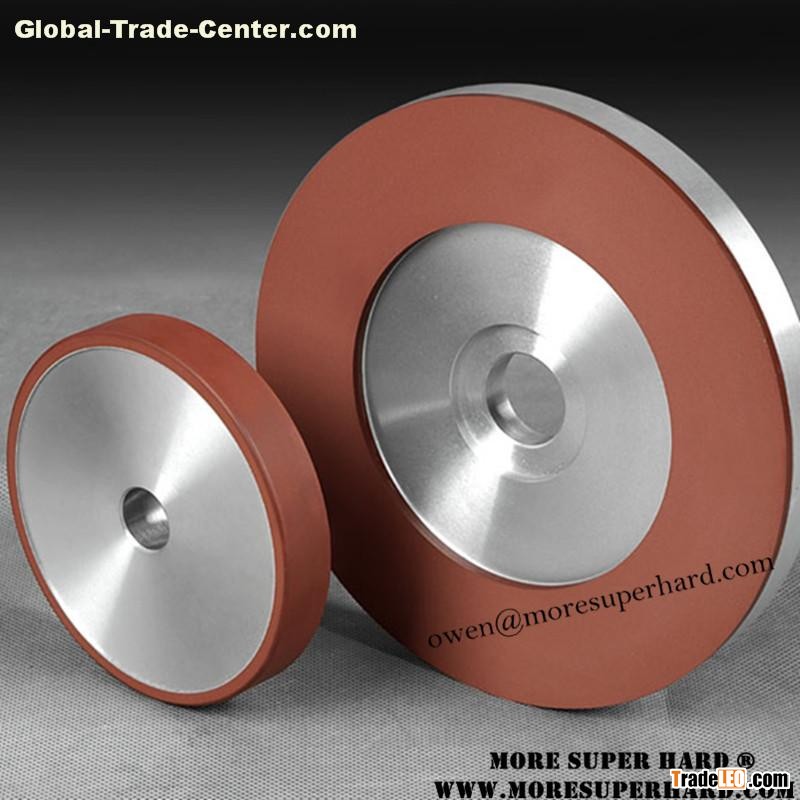

Resin bond diamond grinding wheel, resin diamond grinding disc, resin diamond grinding pad, resin diamond polishing wheel, resin diamond bruiting wheel, glass grinding wheel

-      Brand: More Super Hard

-      Bonding Agent: Resin Bond

-      Type: Grinding wheel, Polishing wheel, Grooving wheel, Cutting wheel

-      Type Code: 1A1, 1V1, 1EE1, 1FF1, 3A1, 11A2, 6A9, 14A1,14A1R,11V9, 11C9, 4A2, 6A1,6A2, 12A2, 9A3, 1F1,12V2, 1L1, 14EE1, 4B1, 14E1, 4A2P, 11B2, 6A2T, 11V2, 9A1, 1A1R, 1F1, 1A8, 9A1, 9A1B,3K1, 1A1W, 4V2, 1A3, 1A2T, 1A2, 12C9, 14E6Q, etc.

-      Material: Diamond, CBN

-      Size: D. 25-500mm; T. 5-40mm; H. 10-127mm.

-      Line speed: 35~80 (M/S)

-      Grit: 80#~5000# (D251-D1)

-      Application: Rough diamond polishing, PCD/PCBN tools grinding, Tungsten carbide grinding, Glass grinding

-      Application Industry: Jewelry, Automobile, Aerospace, Oil drilling, Coal mining, metal processing

-      Certification: ISO 9001:2000

-      Packing: Carton box with foam box. (Gift package is available)

-      MOQ: 5 pieces

-      Delivery Time: 5—10 Days

-      Sample: Available

Contact Owen for more details, via “owen @ moresuperhard.com”

Features of Resin diamond grinding wheel:

-      The resin bond products have the features of good self-sharpening, sharp cutting, and high efficiency, low roughness of work piece surface, few heat generating and without burning workpiece. They are suitable for high efficiency and precision grinding of most workpieces.

Application of Resin diamond grinding wheel:

-      Resin bond diamond products: mainly used for machining tungsten carbide, ceramic materials, magnetic materials, silicon materials, thermal spraying alloy materials and so on.

Suitable for CNC grinding machine:

-      Ewag, Walter, Vollmer, Agathon, Wendt, etc.

Product Range:

-      Vitrified/Ceramic bond diamond & CBN tools

-      Resin bond diamond & CBN tools

-      Electroplated diamond & CBN tools

-      metal diamond & CBN tools

-      PCD/PCBN cutting tools, milling tools, drilling tools, reamers, boring tools

-      PDC drilling tools, PDC drill bits, PDC drill bit inserts

-      TSP Polycrystalline diamond, TSP inserts

-      CVD diamond plate

Please provide us details when you order, For example,

Product needed: Resin bond diamond grinding wheel

1) Diameter   (25, 40,100,200,300…750mm)

2) Hole/state bore dimension

3) Thickness   (nth="5" w:st="on" year="2004">4/5/6/8/10/…40/50/60mm)

4) Shape (1A1 /1A1R/1A8/1A1W/1L1/1F1/6A2/12A2/11V9/4A1/14A1…)

5) Grit size (16/18, 18/20…40/45,80/100…325/400. In GB or ISO standard)

6) Other request

Contact Owen for more details, via “owen @ moresuperhard.com”
