Brand:AODE BROTHER
Model:M2 M2.5 M3 M4 M5 M6 M8 M10 M12 M14
MOQ:100 Packs

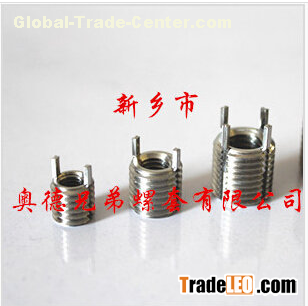

We are the professional manufacturer of keensert threaded insert. And we are sure of them with high quality. And we also could do them by the customers special request.
Keensert threaded insert may be used in alloys, light materials, steel and cast iron to increase the strength of the thread in these materials. They can also be used for thread repair, whereas the defect thread can be replaced with the same nominal diameter.
Keensert threaded insert have less attrition. A multiple tightenting and lossening of the bolt is possible. Locking inserts include a dry film lubrication on the surface to protect the screw from galling.
Keensert threaded insert have a positive lock against rotation and vibration.
Keensert threadeed insert have 2 and 4 pre-assembled kees depending on the diameter. After installation of the kees into the parent material the assembly is form-closed. No check with a thread gauge according to the DIN standard possible in the area of the kees.
Pull-out-strength for Keensert calculation as follows:
Pull-out-strength(N)=shear engagement (mm2)X ultimate shear strength of parent material (N/mm2)
| type | size | inner(6H) | outer(6g) | length | drill |
| min | M2 | M2*0.4 | M4*0.7 | 3 | 3.4 |
| M2.5 | M2.5*0.45 | M4.5*0.75 | 3.8 | 3.9 | |
| M3 | M3*0.5 | M5*0.8 | 4.2 | 4.4 | |
| M4 | M4*0.7 | M6*0.75 | 5.2 | 5.5 | |
| thinwall | M5 | M5*0.8 | M8*1.25 | 8 | 6.9 |
| M6 | M6*1 | M10*1.25 | 10 | 8.8 | |
| M8 | M8*1.25 | M12*1.25 | 12 | 10.8 | |
| M10 | M10*1.5 | M14*1.5 | 14 | 12.8 | |
| M12 | M12*1.75 | M16*1.5 | 16 | 14.8 | |
| heavy duty | M4 | M4*0.7 | M8*1.25 | 8 | 6.9 |
| M5 | M5*0.8 | M10*1.25 | 10 | 8.8 | |
| M6 | M6*1 | M12*1.25 | 12 | 10.8 | |
| M8 | M8*1.25 | M14*1.5 | 14 | 12.8 | |
| M10 | M10*1.5 | M16*1.5 | 16 | 14.8 | |
| M12 | M12*1.75 | M18*1.5 | 18 | 16.8 |
