Type

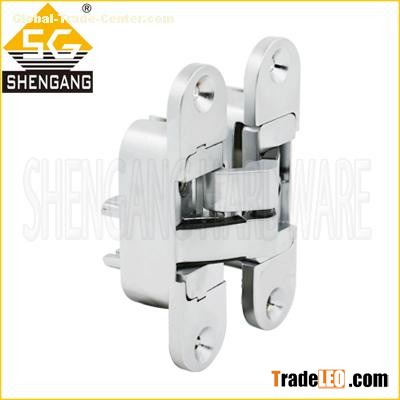

Italy-type 3d adjustable concealed door hinge
Size 111.5*29*36mm
Intermediate gap 16mm
Opening angle 180 degree
Min. door thickness 40mm
Max. door weight 60kg/2 pcs
Three-way continuous adjustment parameters
Left and right: 1mm
Up and down: 1.5mm
Front and back: 1mm
Material
Main part and connector: zinc alloy
Screws and axes: stainless steel
Resistant discs: Nylon PA66
Finishing Pearl chrome
Net weight 0.50kg/pc
