Type

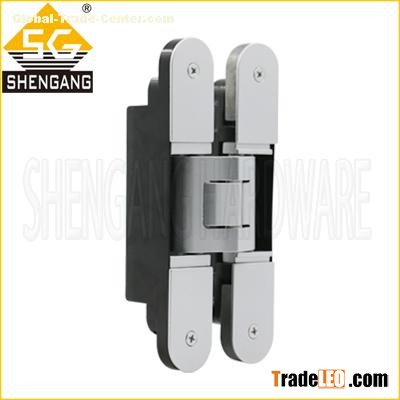

German-type 3d adjustable concealed door hinge
Size 160*28*32mm
Intermediate gap 17.5mm
Opening angle 180 degree
Min. door thickness 40mm
Max. door weight 80kg/2 pcs
Three-way continuous adjustment parameters
Left and right: 3mm
Up and down: 3mm
Front and back: 1mm
Material
Main part: zinc alloy
Connector: aluminum alloy
Screws and axes: stainless steel
Resistant discs: Nylon PA66
Cover: carbon steel
Material finish Zinc alloy: passivating
Aluminum alloy: CNC treatment and painting
Cover: stamping and painting
Finishing Barking finishing in different colors
Color Silver
Net weight 0.71kg/pc
