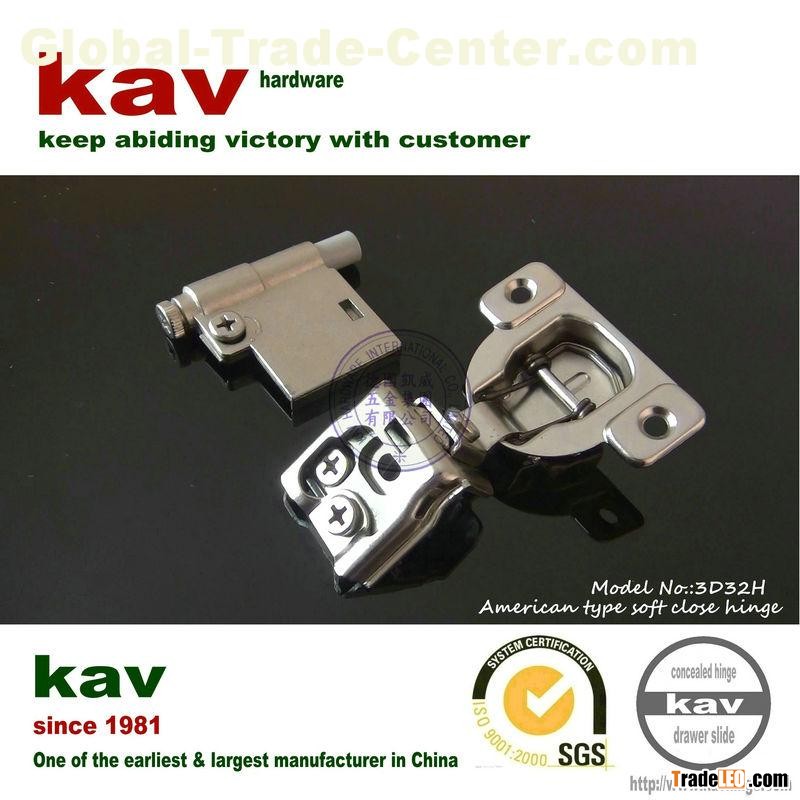

Detailed info of kav brand 3D adjustable soft close hinge for american cabinet with faceframe

Name of hinge:kav brand 3D adjustable soft close hinge for american cabinet with faceframe

Brand :kav

Model No.:3D32H

Finish:Nickel plated

Material:Cold rolled steel

Salt spray test:Pass 48 hours

Open-close test:Pass 50,000 times

Dia. of hinge cup:35mm

Depth of hinge cup:11.5mm

Opening angle:95—105 degree

Pitch hole:48mm, 45mm, 52mm

Thickness of door :14—21mm

Overlay:1/2", 1(1/4)"

Application:Cabinet with faceframe

Packing :100 pcs/ctn, 200 pcs/ctn or as customer’s demand

OEM & Customizing:OEM & Customizing is available.

Product advantages:

1.3D hydraulic hinge for American cabinet with faceframe.

2.Adopting advanced hydraulic system, longer life time and smaller volume.

3.Our concealed hinge has been sold more than 500,000,000 sets all over the world for now already, which proves that our products have high quality and competitive price.

4.Strengthened adjustable screw can widen the adjustable ranges and lengthen using life.

5.Widening manganese steel spring can disperse force when the hinge closed. Strengthened spring is 2.5mm thick, while the thickness of normal ones is 1.5mm.
