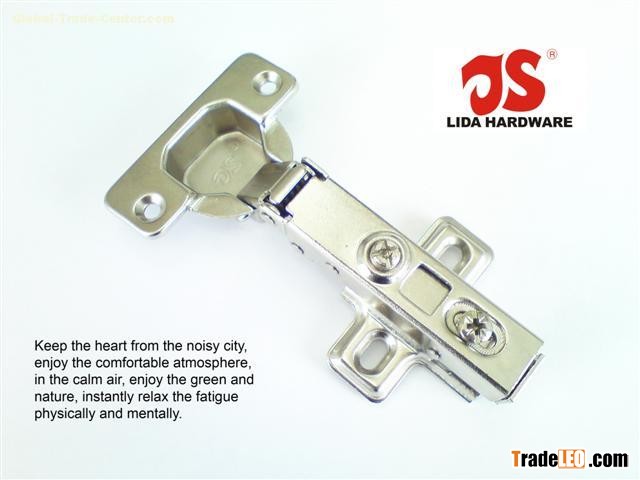

Furniture hinge,furniture hardware,furniture fitting, Cabinet Hinge, Clip-on soft closing hinge

Material:

1)  Material: Iron

2)  Finish: Nickle-plated

3)  Character: Copper electric-plated first, then nickel electric-plated

Features:

1)  Plated: 2/4 holes.

2)  Open Angle: 105°

3)  Diameter of Hinge Cup: 35mm

4)  Cup Hole Distance: 45mm 48mm 52mm

5)  Height of Hinge Cup: 11.3mm or 9mm

6)  Distance from Edge of door to the Edge of the cup: 3mm-7mm

7)  Recommended Door Thickness: 14mm-22mm

Advantage:

SA200 Clip-on hydraulic buffering hinge is mainly used on the cabinet and furniture with fine craftwork and small shape. It has the advantage of quick installation and good and competitive price.

Packing:

1) Logo Engraving: JS or base on the customer's requirement

2) Carton Measurement (CM):  41.5*33.5*16.3

3) Gross Weight: 10.5 KGS

4) Net Weight: 9.5 KGS

5) Weight/Item: 93 g

6) 20 Feet Container: 1150CTNS
