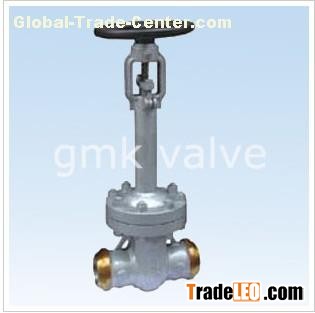

Product name:Bellow Seal Gate Valve
Size: 2"-32"

Pressure: 150LB,300LB,600LB,900LB

Material: WCB, LCB,LCC, WC6,WC9, C5,C12,C12A, CF8, CF8M, CF3, CF3M, CN7M ect
Connection: Flanges,RTJ Flange,Butt Weld,Hub end,Groove
Operate: Handwheel, Wormgear, Gearbox, Penumatic Actuator, Electric  Actuator, Hydraulic Actuator

Feature:
1,OS&Y Outside Screw and Yoke, Bolted Bonnet

2,This product has logical structure, reliable seal, excellent performance and nice design

3,Double Bellow & Sealing.

4,Convenient Maintenance,Position Indicator.

5,Stem quenched and temperatured its surface is treated by nitriding treatment,thus it has good corrosion resistant and friction resistant.

Standard:
Design and Manufacture:ANSIB16.34,API600 API6D,API602,BS1414
Pressure-temperature rating: ASME B16.34
Face to face(end to end):ANSIB16.10
End Connection: 2"-24" ASME B16.5; 26" -42" ASME B16.47; B.W end ASME B16.25
Test and inspection:API598
