Description

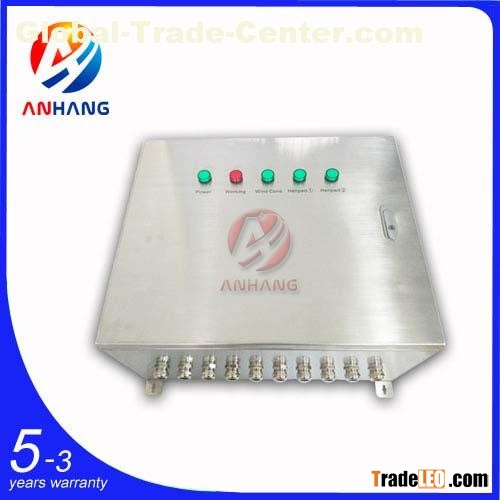

AH-HP/G Heliport Outdoor Controller use 316 stainless steel material as enclosure with good waterproof, UV protection and surge protection device (anti lightning In 15KA/5, Imax 40KA),so it can be used in very bad environment. Heliport Outdoor Controller can control ON and OFF of all Helipad lighting.

Main Parameter

1. Mode:AH-HP/G
2. Control capacity for heliport lighting: ≤6
3. Operating voltage: AC220V (Option other voltage, AC120V, DC48V, DC24V, etc)
4. Power consumption: 20W
5. Max load: 5KW
6. Overall size(mm): 574 by 600 by 315
7. Installation size: 560mm by 538mm by ¢10
8. Enclosure material: 316 stainless steel
9. Working way: At night or all day
10. Weight: 20Kg
11. Application lights: All heliport lighting
11. Ambient temperature:-55℃~+70℃
12. Wind load: 80m/s
13. Protection standard: IP67
