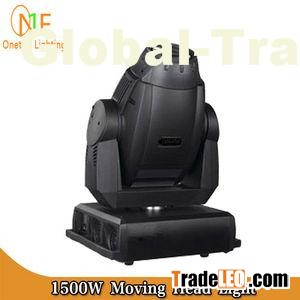

1500W Moving Head Light OT-S1500

Technical Parameters:

OPTICAL SYSTEM

Lamp bulb: 1500W OSRAM bubble

Illumination requirements: when the light angle is 10 degrees at a distance of 10 meters,  the spot diameter is 1.8m ± 0.2m, the illumination value should ≥16500LUX.

COLOR SYSTEM

Color mixing function: support for smooth gradients CMY color mixing.

Color wheel: 1 fixed color wheel, 7 colors + white light, with rainbow effect, color film can be changed, gobo can be selected.

GOBO SYSTEM

Gobo wheel: 2 can be positioned, rotating gobo wheels, each is with 5 replaceable glass or metal gobos, each gobo built-in macro function with scale positioning.

EFFECT EQUIPMENT

Effect wheel: 1 effect wheel, rotating 3-facet prism effect (rotating beam shape, or wide-angle lens, or other prism effect), with gradual atomization function.

Dimmer / strobe: 0 ~ 100% linear mechanical dimmer, ensure uniformity of the dimming process spot. Strobe speed is not less than 0.5 to 14 times / sec, built-in strobe macro function.

Aperture: electric aperture, 5 to 100% linearly adjustable, built-in iris macro function.

Zoom: optical linear zoom: 7 times, support auto-focus function.

Focus: Focus 2 meters to infinity, ensure a clear focus imaging above 30 meters, no shadows.

ConTROL AND PROGRAMMING

Control channel: multiple control channel mode selection, the largest channel 38 mode

Reflective cup: imported glass cold light reflector cup

Color temperature correction: Color Correction with 3000K~6000K.

Level: Horizontal: 540 °, Vertical: 270 °, 8 or 16 bit resolution, built-in macro function, require to adopt dual loop output, dual-motor drive, running fast and smoothly, accurate fixed light, no jitter.

ELECTRonIC ConTROL TECHNOLOGY

Reset system: The horizontal and vertical use of photoelectric reset the system,  when the light malfunction occurs, it can automatically retrieve reset.

Installation: Lamps and lighting composed of one hook in the loading and unloading process without the use of lighting, no need to find a separate storage space, with a full range of installation characteristics, easy maintenance and quick.
