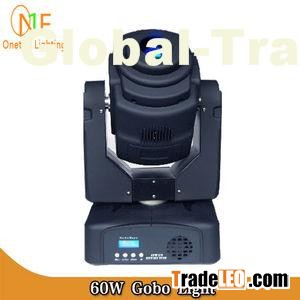

60W Gobo Light OT-LED60

Technical Parameters:

FEATURE

Multi functions, energy-saving, Long life lamp, high performance security, can be normal work in wide voltage range

POWER SUPPLY

Voltage: AC90V-240V, 50-60Hz          Total power: 150W

OPTICAL SYSTEM

Light source: 1 pcs 60W high brightness LED

Luminous flux 2m: 4500LM

Projection angle: 15°

COLOR SYSTEM

Color wheel: 7 colors + white light, speed adjustable, rainbow- flow effect

GOBO SYSTEM

Gobo wheel: 7 gobos + white light, (2 glass + 5 metal, interchangeable), gobo shake, bi-directional rotation

Static: 9 static metal gobos

EFFECT EQUIPMENT

Focus: Electronic focus

Dimmer: 0-100%

Strobe: 0-20Hz

3 facet prism: rotating and speed adjustable, can change the direction

MOVING PARAMETER

Horizontal scanning angle: 540 °

Vertical scanning angle: 255 °

ConTROL AND PROGRAMMING

Operation mode: DMX512, voice-activated, self-propelled, master / slave

Control channel: 13 channels

PHYSICAL

Signal cable: 3-pin XLR
