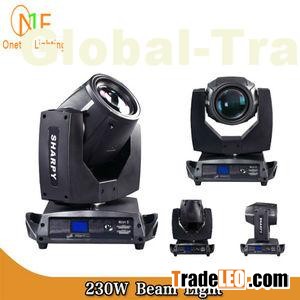

230W Moving Head Beam Light OT-B230

Technical Parameters

1. Voltage: AC100-240V,  50/60Hz, electronic ballast

2. Power: 400W

3. Light Source: MSD200W, Philip bulb

4. Fuse: 7A

5. Color Temperature: 8000K

6. Average Life: 2000 hours

7. Color Wheel: 1 fixed color wheel, 14 changeable colors + white light, semi-color effect

8. Gobo Wheel: 1 fixed gobo wheel, 17 gobos + white light, high-speed jitter.

9. Effect Wheel: 1 rotatable 3 facet prism, effect move, atomization effect

10. Prism: rotatable 8 facet prism effect, bi-directional rotation, beam effects can zoom in or out (12 or 16 facet prism can be customized)

11. Beam Angle: 0-3.8 °

12. Focus: electronic focus

13. Dimmer: 0-100% linear dimming

14. Strobe: 0-10 times / sec, adjustable speed

15. Channel: 16CH

16. LCD: On / Off

17. Optical Lens: 3 optical lens combined

18. Motor: 13 ultra-quiet motors, 2 three-phase motors, 16 bit driver

19. Scanning Range:Horizontal 540 °, Vertical 270 °,  8Bit/16Bit resolution

20. Protection: Communication design is compatible with the DMX512 protocol overheating protection standard.

21. IP Rate: IP20, overheating protection

22. Carton size: 460x420x550mm

23. Net Weight: 17.5kg         Gross Weight: 19kg
