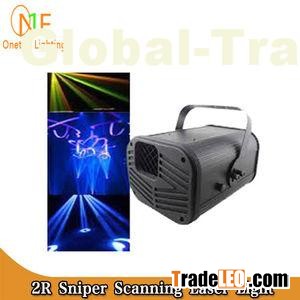

2R Sniper Scanning Laser Light OT-SM2R

Technical Parameters:

FEATURE

The combined effect of light, beam, scanning, laser simulation beam angle 3 degrees

POWER SUPPLY

Power supply: AC 100-240V, 50/60Hz     Rated power:220W

Life time: 6000 hours

OPTICAL SYSTEM

Source: Philips MSD platinum 2R

Photometric data: 3. Beam illumination value

COLOR SYSTEM

Color: 14 colors + white light

GOBO SYSTEM

Gobo: 17 Figure + white Aperture

EFFECT EQUIPMENT

3-facet prism and rotation: X, Y, Z high-speed galvanometer

Effect: Strobe, dimming, 3-facet prism and rotation, conical rotation

ConTROL AND PROGRAMMING

Channel: 17CH / 21CH

Control / Connection: two DMX mode (17/21)

Button control panel: 3-pin XLR port

Adaptation temperature: - 7 degrees - 40 degrees

PHYSICAL

Dimensions: L358*W268*H197mm          Net Weight: 7.5 kg
