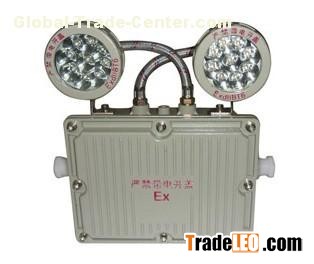

Brand:Bafang
Model:BAJ52
MOQ:1 Pieces
Send Inquiry
Parameters
| Explosion-proof Mark | ExdⅡBT4 |
| Rated Voltage | AC220V/50Hz |
| Protection grade | IP54 |
| Corrosion grade | WF1 |
| Cable entries specification | G3/4 |
| Cable specification | Φ9mm～Φ14mm |
| Emergency voltage | DC6V |
| Charging Time | 24h |
| Discharging Time | 90min |
| Standard | GB3836-2000、IEC60079、 GB12476.1-2000、IEC62241
|
Work range
1. Can be used in Zone1 and Zone 2 dangerous places.
2. Can be used in ⅡA,ⅡB, ⅡC group explosive atmosphere.
3.Suitable for incandescent lamp,mercury vapor lamp.
4.Fit for the standard with 5.Can be used in the environment of temperature group for T1~T6.
