Specification

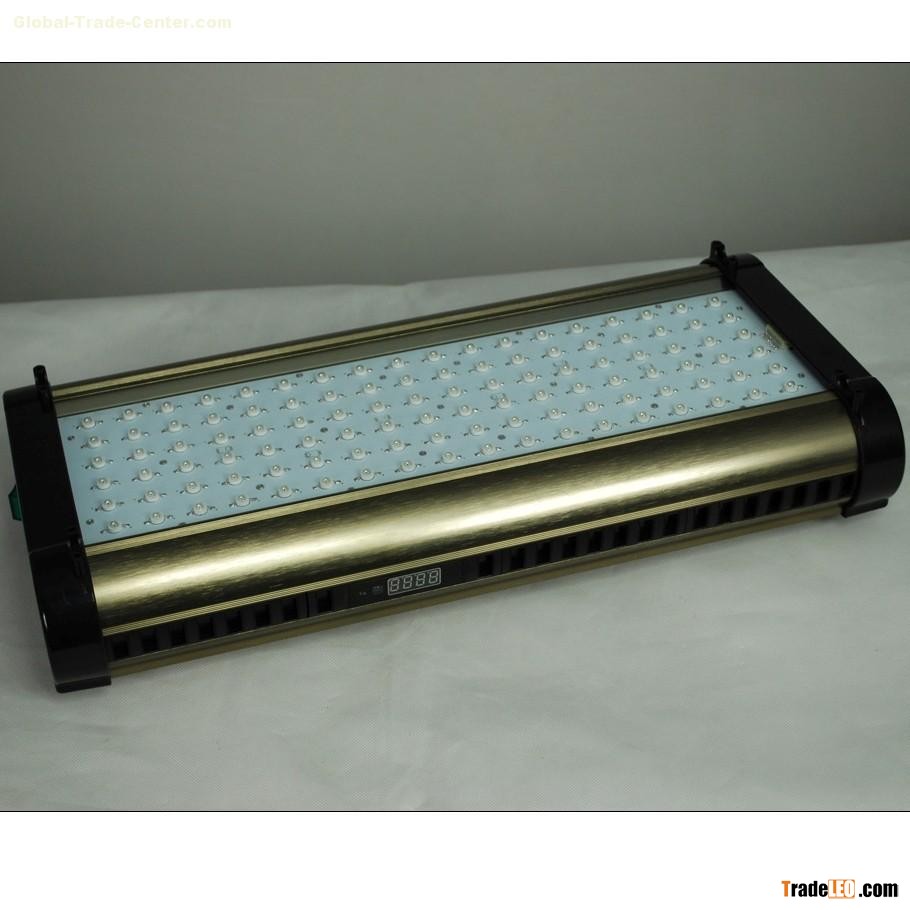

Name:200W LED Grow Light Actual power:190~220W

Model:CDL-G-PT200W        LED Qty:108pcs*3W

Input voltage:AC100~240V LED color:Red(630nm)/Blue(460nm)

Output voltage:DC55~70V Lifespan:50,000 Hours

Input current:670~700mA Brightness value:0%~100%

Low voltage impulse:400us PF:0.9

Control system:RTPM Working frequency:50~60Hz

Circuits:2 Working environment:-20~40℃，45%~95%RH

Product size:512*242*105mm N.W.:4.76kg

Inner carton size:585*270*140mm G.W.(Inner carton ):5.48kg

Outer carton size:600*425*310mm/3pcs G.W.(Outer carton ):17.78kg

Standard configuration: LED Light x1,Remote control x1,Power line x1,Chaining x2,Remote control operating instruction x1

Remarks:The above parameter is based on Red:Blue=8:1, for reference only

Illumination and PAR value data sheet

Height(cm) 20 40 60 80 100 150 200

PAR (umol m-2s-l) 1282 420 211 115 72 33 17

Illumination(lux) 32000 11400 5700 3200 2020 955 543

Irradiation Area(m^2) 6.6 12.32 17.35 21.34 25.88 32.37 42.54

(Remarks: the irradiation area is base on PAR value>10 )

Optional 14W/45W/50W/120W/200W/400W/300W/600W and special customization

Application:

Ideal for all phases of plant growth, and works well with water solution culture and soil culture. Can be used in house garden, pot culture, garden, sowing, breeding, farm, flower exhibition, bonsai, garden, green house, sowing,breeding, farm, greenhouse cultivation, water soluble breeding, greenhouse cultivation, pipeline cultivation and so on.
