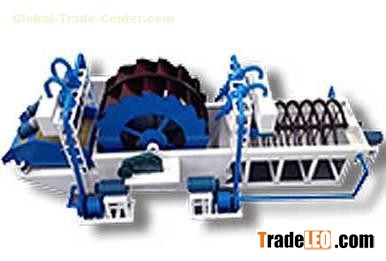

With the shortage and non-renewable of mining resources, LZZG blockbuster launched DS series new sand washing equipment.
Working principle
Sand becomes the qualified products by the screening machinery, then flow into spiral stirrer through chute, the spiral sitter will clean, soak, break up sand ( especially direct at high mud content material), tailing waste water discharges into separating device to concentrate and grading. Tailing and coarse ore discharges into waterwheel to be cleaned and dehydrated at the same time, waste water discharges into secondary separating device to concentrate and grading, tailing and coarse ore discharges into dehydration and desliming device at the same time again. Then the finished product which is fully dehydrated by high frequency vibrating motor will be transported into material pile by belt conveyor and for sale.
Technical
- The equipment has incomparable advantage and cost effectiveness, the technology is well ahead of world-class level.
- The rate of finished product which is washed by DS series machine is up to 98%.
Specification
| Model | Power (kw) | Sand capacity (t/h) | Max feeding size (mm) | Secondary separating (optional) | Cyclone material | Sand production rate | Weight (t) |
| DS-L2612 | 42.9 | 30-50 | ≤10 | No | Polyurethane, KM composite ceramic, corundum | 90% | 11 |
| DS-L2612 | 64.9 | 40-60 | ≤10 | Yes | 98% | 12.5 | |
| DS-2L3015 | 66 | 80-100 | ≤10 | No | 90% | 22.3 | |
| DS-2L3015 | 96 | 90-110 | ≤10 | Yes | 98% | 24 |
