low invest high efficient vibrating sieve machine in rock gold mining plant

2016-10-02 13:51 Views:306

Price:1500.00 USD/Sets
Brand:DY
Model:DZSF-520
MOQ:1 Sets

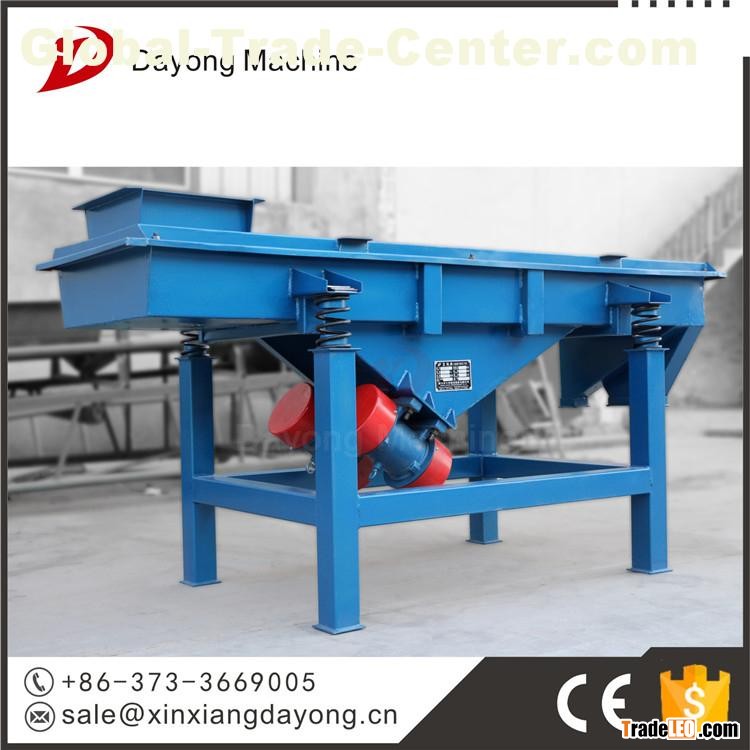

Linear vibrating screen

Company profile

Dayong Vibration Equipment Co. , Ltd. is a professional manufacturer of mechanical vibration of the professional design , development , manufacture.At present we have established a long-term cooperative partnership with the United States, Germany, Turkey, Indonesia, Tunisia and other countries.We insist on focusing on the leading advanced technology of screening and filtering.and are good at the design and production of vibrating screening machines.

Application

1.Plastic: commodity pellets, engineered pellets, PVC resin

2.Agriculture: grains and wheat, soybeans and oilseed, pellets and crumbles, meat meal, pet food,

tobacco, corn sizing (ethanol)

3.Chemical: fertilizer, ammonium sulfate, catalyst, calcium hypochlorite

4.Mineral: abrasives and glass, sand, potash, roofing granules, slat, clay, petroleum coke,

proppant beats, industrial sand, UREA, bentonite

5.Foods: cereals, citric acid, coffee, milk, coconut, flour, rice, starch, sugar, breading, instant coffee

6.Recycling: ground auto tires, ground PET bottles, ground glass bottles, recycled gypsum

7.Miscellaneous: metal powder steel shot, wood flour, fly ash

Work principle

Linear Vibrating Screen uses double vibrating motors to be power source,when two motors synchronous reversely rotate,exciter forces eccentric block generates are undone in parallel with the direction of motor axis and unite as one across the motor axis direction ,so its movement trajectory is linear .There is an angle of inclination two motor axis ts relative to screen deck ,under the influence of exciter force and materials self weight ,materials self weight ,materials are threw up to make salutatory and linear movement forward on the screen deck in order to screen and grade the materials .Applied in flowing line to achieve automatic operation.

Advantages

1.Quick and easy screen inspection, screen changes, and cleaning by one person

2.Screens can be changed in 80% less time

3.Fully enclosed structure avoids dust overflow, reaching the request of sanitation

4.Simple and rational tension mode of screen, easy to replace

5.The screen frame may be replaced as per different mesh numbers,saving running cost

Technical parameters

Model Dimension（mm） Granularity（mm） speed（r/min） Amplitude

DZSF-520 500*2000 0.074-60 960 2~6

Model Dimension（mm） Granularity（mm） speed（r/min） Amplitude

DZSF-525 500*2500 0.074-60 960 2~6

Model Dimension（mm） Granularity（mm） speed（r/min） Amplitude
