Brand:Dy
Model:dYB-800
MOQ:1 Sets
Send Inquiry
Food vibrating screen shaker
Company information
Our company is the manufacturer which produces manufacture of the vibrating screen for many years.And it is the ISO9001:2000 authentication enterprise. Because of exquisite technology, high quality and all-around services, our equipment has become the best seller in more than 20 provinces, cities, and autonomous regions in China.
about our products
| Working principle | The instantaneous motion along the radial displacement and this displacement axis circular motion synthesis (spiral motion).It can adjust the eccentricity of the exciter nonlinear three-dimensional motion, the materials also produce the same the approximate manual operation movement, so as to achieve the purpose of screening,together with screening attachments can be obtained more ideal screening effect; suitable in a round, spherical, cylindrical, sheet-like, or even irregular shape and easy blocking network and requires precise sieving materials. |
| Main Parts | Rubber ball,Viewport,Outlet,Oil filler pipe,Principal axis,Driven shaft,Bottom frame,Pyramid-shaped base ,Spindle counterweight iron,V belt,Drive motor,Driven shaft counterweight iron,Aggravating blocks,Protection board,Oil injection hole,Reellocks,Dust c |
| Advantages | 1.Noise <75 dB. Re-optimization is balanced, ground-based dynamic load is low |
| 2.7 decks can be used at most, and each effective screening area is 0.28-6.4 square meter.So 8 kinds of particles can be separated at most | |
| 3.Several screening collocation (optional), making the best screening obtained | |
| 4.Unique design, low speed (speed between 180-280), compared with the traditional screen machine, service life is increased by more than 10 times, reduce the maintenance cost, save the maintenance time | |
| Application | Apply to mine, casting, abrasive, building materials, cement, chemical, fertilizer, medicine, light industry, paper making, food, food industry, salt, grain and other granular, powder industry dry wet type screening, the liquid-solid separation wastewater recycling and trust in the sieve occasion |
Technical parameters of Food vibrating screen shaker
| Food vibrating screen shaker | ||||
| Model | Diameter(mm) | Screening surface (m²) | Layer | Power |
| DYB-600 | 600 | 0.292 | 1~5 | 0.25 |

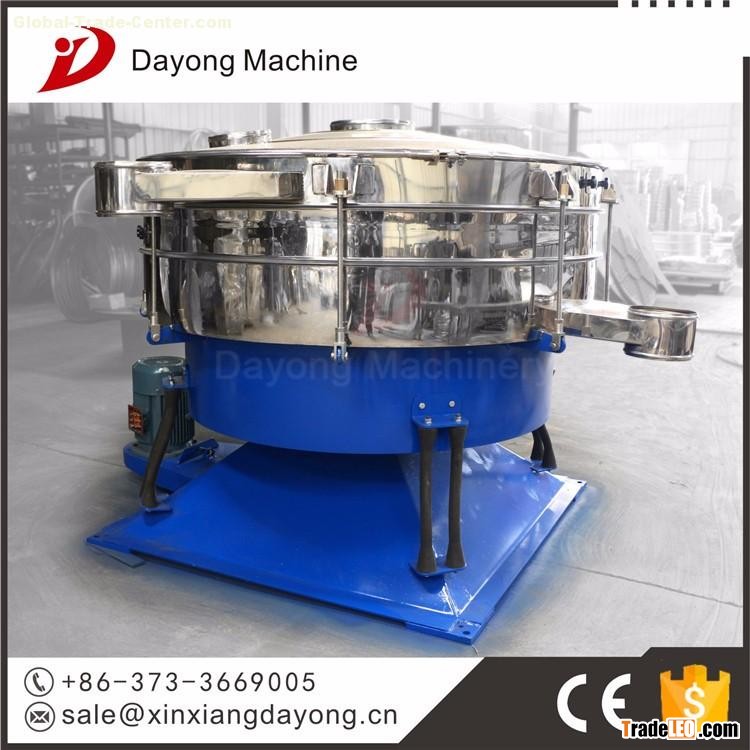

Picture show of Food vibrating screen shaker
if you are interested in our products,pls email or call us
Tel:86-373-3669005 Fax:86-373-3669006 Skype:xinxiangdayong06
Website: www,vibrating screen.cc
Welcome to visit our factory and look forward to your cooperation!
