Brand:DR
Model:DR-D-001
MOQ:1 Sets

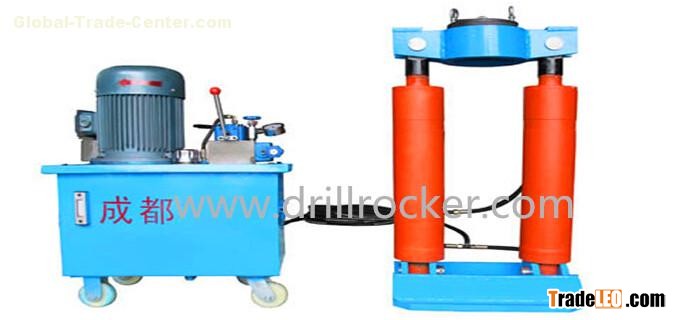

DR60/80T Hydraulic Casing Extractor
Application
Hydraulic Casing Extractor is dedicated to solve protection casing drilling in the drilling process due to the complex formation. Using the Hydraulic Casing Extractor can convenient, pull out casing ground smoothly, eliminate borehole scrap accident, It is the neccessary to Hydraulic Drilling Rig accessory.
Structural Features
1. The Hydraulic Casing Extractor adopts through type single cylinder work, tube drawing force uniform, light weight, convenient handling
2 Simple structure, reliable, small size, light weight, convenient disassembly. For the mountains, no road site operation.
3 The Hydraulic Casing Extractor can according to customer different types casing configuration model slips, make it easy for customers to solve the problem of extubation.
Technical Prameter
| Type | DR-60 | DR-80 |
| Rated pull Force | 60T | 80T |
| Pulling Deep(mm) | 500 | 500 |
| The Highest System Pressure(Mpa) | 31.5 | 31.5 |
| The Motor Power(kw) | 5.5 | 5.5 |
| Weight(Kg) | 210 | 240 |
| Common Slip ¢73、¢89、¢108、¢127、¢146、¢168 Tube Extractor in civil engineering piling drilling/pipe extractor machine | ||
