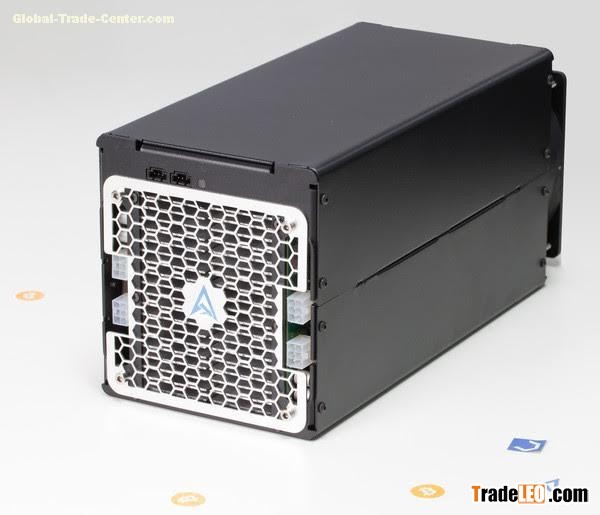

Product Description

Hash rate：   　3.5T±10%
Power at wall   1100W（power efficiency 90%）。
Quantity of chips   80
Power connector   4x 6PIN，all 4 connectors required when running
Temperature   Max operating ambiant air temp 38℃
Controller   Raspberry PI（version 1，B，B+），。
Each Raspberry PI can control 10 units
Protection   The machine will not start when the fan is damaged 。
Dimension   136×150×334mm
Weight   4.8kg
Power supply   1200W gold power supply recommended


A Raspberry Pi controller is needed for this machine to function.

Raspberry Pi, Version B or B+ (RPi 2 is not yet supported)

Each RPi can control 50+ miners

(We can sell RPi kits for $75)

COMMUNICATION INTERFACE:

IIC/I2C

WORKING ENVIRONMENT:

0C to 35C, 10% to 80% relative humidity, non-condensing

TRANSPORT / STORAGE ENVIRONMENT:

-15C to 40C, 10% to 90% relative humidity

DIMENSIONS:

354mm x 130mm x 150mm

WEIGHT:

4.3kg

PERFORMANCE VARIANCE:

 ± 5% variance possible on quoted performance statistics
