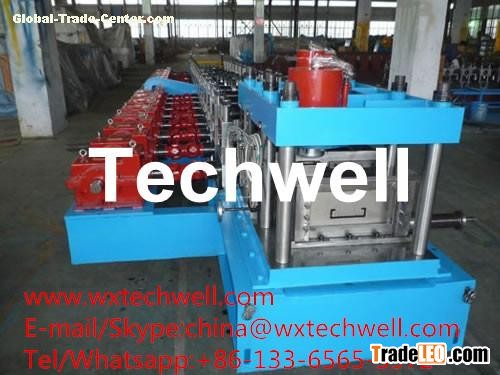

C purlin roll forming machine for making steel c shaped purlin.

A).  Main Components:

Decoiler -------------------------------------------- 1 Unit

Feeding & Leveling -------------------------------- 1 Unit

Main roll forming machine ------------------------ 1 Unit

Hydraulic punching device ------------------------ 1 Unit

Hydraulic cutting device --------------------------- 1 Unit

Hydraulic Station ----------------------------------- 1 Unit

PLC computer control ------------------------------ 1 Unit

Output table ---------------------------------------- 1 Unit

B). Work Flowing:

Decoiler --- Feeding & Leveling --- Roll Forming --- Punching --- Cut-to-length --- Run out table

C). Main Specification:

²  Material: GI, Carbon steel

²  Material thickness: 1.5-3.0mm

²  Machine diameter: about 11500x1500x1300mm ( LXWXH )

²  Weight of machine: about 10 Ton

²  Decoiler: Manual or hydraulic decoiler ( customer can choose )

²  Weight capacity of decoiler: 5 Ton

²  Forming station: 14

²  Principle axis: 75mm diameter

²  Forming speed: 0-15m/min

²  Drive type: 1.5' chain transmission

²  Roller material: GCr15 steel, quenched  and heated process

²  Main power: 15KW

²  Hydraulic power: 11KW

²  Punching: hydraulic punching

²  Electrical Control: PLC Frequency Control System with touch screen

²  PLC: PANASonIC Brand

²  Encoder: OMRON Brand

²  Transducer: PANASonIC Brand

Applications:

C purlin, c shaped purlin, c channel, lip channel, c section, c profile, c shape, steel c purlin, c purlin steel structure
