Brand:china junhe

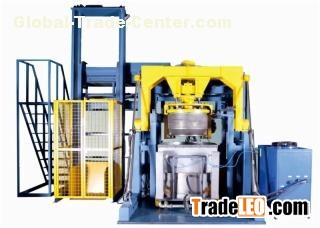

Model:DST S 800
MOQ:-0 -
Send Inquiry
Application:suitable for any kinds of zinc flake paints and related top coat,seal,teflon coating.
PARTS
● RECOMMENDED（MAX）：1000gpc
● RECOMMENDED LENGTH (Stamping parts) ：260mm
● RECOMMENDED SIZE (Fasteners) ：M4-M16 mm
PERFORMANCE (based on M10)
● MAXIMUM LOAD ：100 kg/B
● MINIMUM CYCLE TIME ：180sec
● AVERAGE CYCLE TIME ：240sec
● MAXIMUM BASKET OUTPUT ：20 B/h
● AVERAGE BASKET OUTPUT：15 B/h
● MAXIMUM PRODUTION ：2000 kg/h
● AVERAGE PRODUTION ：1500 kg/h
Parameters
| No | Structure | Items | Parameter | |
| 1 | HOST | L * W * H | 3200*2210*3080mm | |
| 2 | MAX DIPPING SPEED | 60r/min | ||
| 3 | MAX SPINNING SPEED | 400r/min | ||
| 4 | MAX CENTRIFUGAL FORCE | 45000 N | ||
| 5 | MAX IMUM DEGREES OF TILTING | 75° | ||
| 6 | MAX DIPPING ALTITUDE | 280mm | ||
| 7 | AUTO DIP | YES | ||
| 8 | POWER | 22kw | ||
| 9 | WEIGHT | 7T | ||
| 10 | DIPPING BASKET | C CRESCENT TYPE （FIT SREW ） | HEIGHT/DIAMETER | 450/600mm |
| WEIGHT | 40kg | |||
| 11 | R ROUND HOLE TYPE （FIT STAMPING ） | HEIGHT/DIAMETER | 450/600mm | |
| WEIGHT | 40kg | |||
| 12 | S TYPE （FIT BOLT ） | HEIGHT/DIAMETER | 450/600mm | |
| WEIGHT | 55kg | |||
| 13 | F FUNNEL TYPE | HEIGHT/DIAMETER | NO | |
| WEIGHT | NO | |||
| 14 | PAINT TANK | MRASUREMNT | HEIGHT / DIAMETER | 990/830mm |
| 15 | DIPPING HEIGHT | MAX LOADING CAPACITY | 367L | |
| 16 | EXTENSION SLEEVE | EXTENSION HEIGHT | 200mm | |
| 17 | WARNING DEVICE | PAINT LEVEL / TEMPERATURE WARNING | YES | |
| 18 | STIRRING FUNCTION | DIAPHRAGM PUMP STIRRING | CHOOSE | |
| PNEUMATIC STIRRING | CHOOSE | |||
| 19 | INSULATION STRUCTURE | COOLING JACKET | CHOOSE | |
| 20 | INSULATION DEVICE | CHILLER | CHOOSE | |
| 21 | CONTROL AND OPERATION | TYPICAL CAOTING PROCESS | CHOOSE | |
| 22 | PC OPERATE & CONTROL SYSTEM | CHOOSE | ||
| 23 | OTHER OPITIONS | CLIMATE CONTROL CELL | CHOOSE | |
| 24 | linkING DISTRIBUTOR | CHOOSE | ||
| 25 | AUTO RE-COATING LOOP BACK COVEYOR | CHOOSE | ||
| 26 | SAFETY PROTECTION FOR COATER (LASER LIGHT CURTAIN) | CHOOSE | ||
Note:All parameter are based on M10 bolt.
