Brand:Believe Industry
Model:YX51-342-1025
MOQ:1 Sets
Send Inquiry
Description:

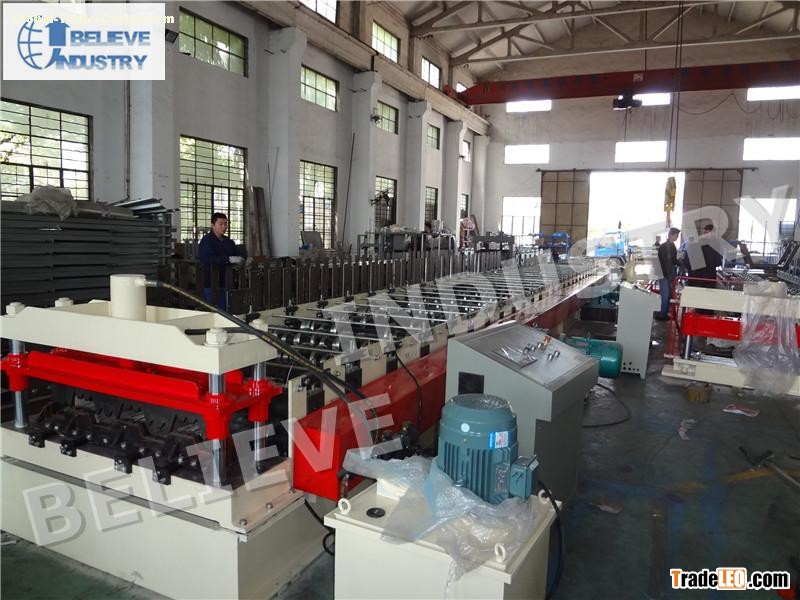

This metal Floor Decking Roll Forming Machine is used to produce metal floor decks. Main components of this machine are decoiler, guiding and leveling device, roll former, hydraulic cutting device, collecting table, hydraulic station, etc.
| Technical Parameters - YX51-342-1025 | |
|---|---|
| Raw Material | Carbon Steel, Galvanized Steel, Q235 |
| Material Thickness | 0.8-1.5mm |
| Material Width | Depend on specific profile |
| Diameter of Shaft | 120mm |
| Material of Shaft | 45# steel |
| Material of Rolls | GCr15 Over quenching HRC 58-62° |
| Main Power | 11KW*2 |
| Forming Speed | 15-20m/min |
| Forming Station | 24-32 stations |
| Cutting Type | Hydraulic cutting |
| Cutting Blade | Cr12 Mov |
