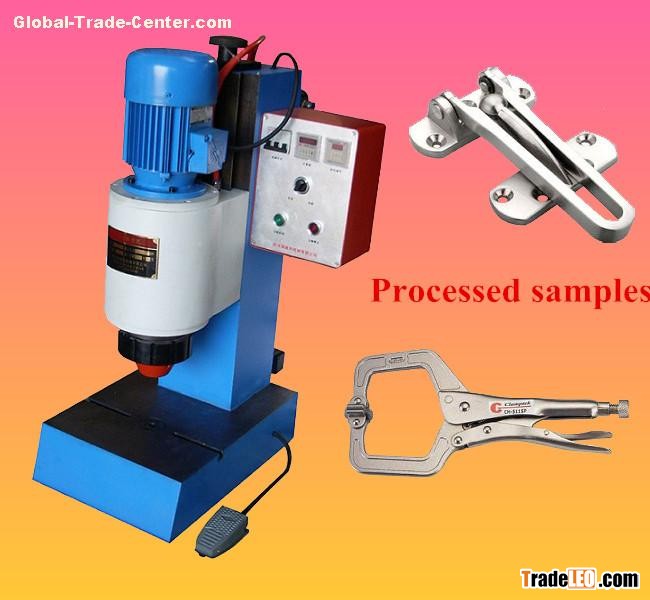

BM9TQ (Pneumatic orbital riveting machine)

Characteristics:

A.Desktop with pneumatic machine

B.Orbital structure

C.Max riveting diameter Ф 9mm ( solid  steel rivet )

D.Stroke speed adjustable

E.Power head movable

F.Setting riveting time as will

G.Manual & auto functions

BM9TQ

Scope of applications : Daily hardware, electronic products, toy products, automobile products etc.

Customzied available.

     The model of BM9TQ is a kind of smaller desktop pneumatic riveting machine with orbital structure. The machine's power head adjustment up and down to meet variety of workpiece's body and shape. The pneumatic system equipped with aerosol lubricating,double way regulation to control piston stroke speed effectively. Electric control system equipped with counter and time relay to easy and simple operations. T-slot on bench to fixing clamping apparatus available, positioning hole is coaxial with spindle to insure riveting process accuracy at ±0.02mm.

Specification:

1.Max riveting diameter                   Ф 9mm ( solid steel rivet )

2.Max riveting pressure                   14Kn

3.Stroke Length Range                   30mm

4.Available space                            220mm

5.Throat depth                                 160mm

6.Riveting tool length                       50mm

7.Eccentric angle                             4°

8.Motive force                                  Pneumatic

9.Workbench dimensions             360mm×290mm

10.Power                                           0.55Kw

11.Physical size                               500mm×400mm×980mm

12.Net weight                                   280Kg
