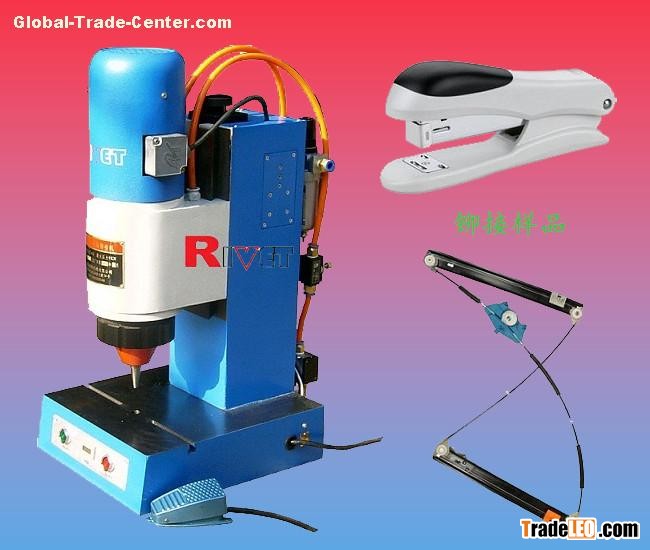

BM6TQ (Pneumatic orbital riveting machine)

Characteristics:

■Desktop style

■Max riveting diameter Ф 6mm

■Power head movable

■Pressure by stepless regulation

■Pneumatic driving

■Rotary part protected

■Double-hand buttons or foot pedal

■Aerosol lubrication

■Set the riveting time as will

Scope of applications : The instruments and meters, daily hardware, electronic                                                                      products, automobile parts, etc.

Customized available

      The model of BM6TQ is a kind of smaller desktop pneumatic riveting machine with orbital structure. The machine's power head system adjustment up and down to meet variety of workpiece's body and shape. The pneumatic system equipped with aerosol lubricating, double way regulation to control piston stroke speed effectively. Electric control system equipped with counter and time relay to easy and simple operations. T-slot on bench to fixing clamping apparatus available, positioning hole is coaxial with spindle to insure riveting process accuracy at ±0.02mm.

Specification:

▲Max riveting diamete                 Ф 6mm ( solid steel rivet )

▲Max riveting pressure                9Kn

▲Stroke                                         20mm

▲Availble working space            150mm

▲Throat depth                              125mm

▲Riveting tool length                    50mm

▲Eccentric angle                          4°

▲Motive force                               Pneumatic

▲Workbench dimensions           320mm×220mm

▲Power                                        0.92Kw

▲Physical size                            400mm×350mm×800mm

▲Net weight                                 150Kg
