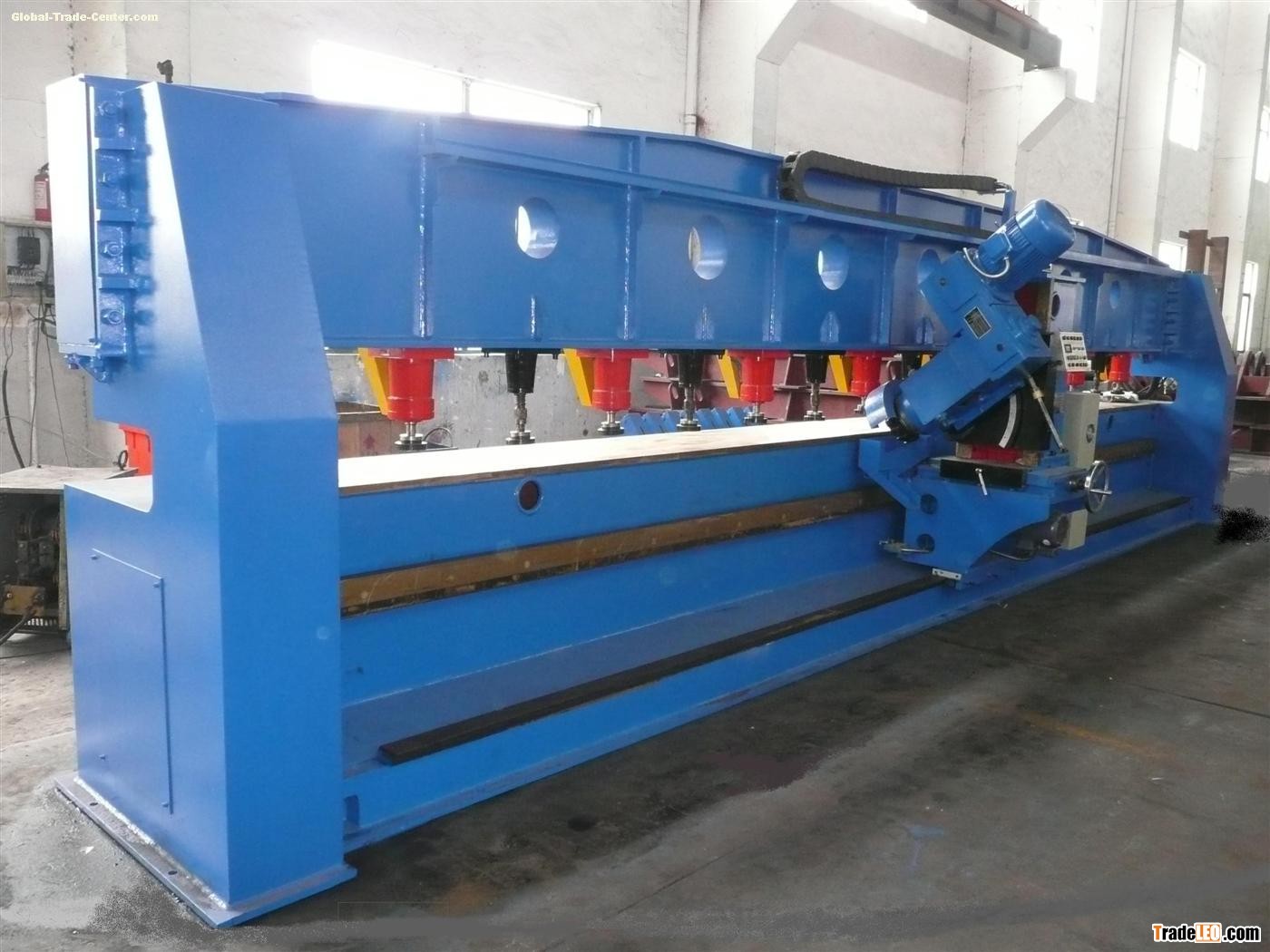

For Power transmission pole / high mast pole, the body plate thickness can be 8~25mm. Plate cutting can be through flame cutting machine. The cutting edge shall be machined to improve welding seam. for big thickness plate, welding gap shall be with slop to guarantee penetrably welding.
Technology parameter
| Model | XBJ-6 | XBJ-9 | XBJ-12 | XBJ-15 |
| Plate length （mm） | 6000 | 9000 | 12000 | 15000 |
| Plate thickness （mm） | 6 ～ 50 | |||
| Milling angle （°） | 0 ～ 45 | |||
| Milling speed (mm / min) | 300or500 | |||
| Cutter return speed（mm/min） | 5000 | |||
| Cutter rotate speed (rpm) | 125 ～ 800 | |||
| Number of hold down | 8 | 11 | 15 | 18 |
| Work pressure (MPa) | 3.5 | |||
| Table height （mm） | 900 | |||
| Machine size （mm） | 7724×2600×2050 | 10724×2600×2050 | 13724×2600×2050 | 16724×2600×2050 |
