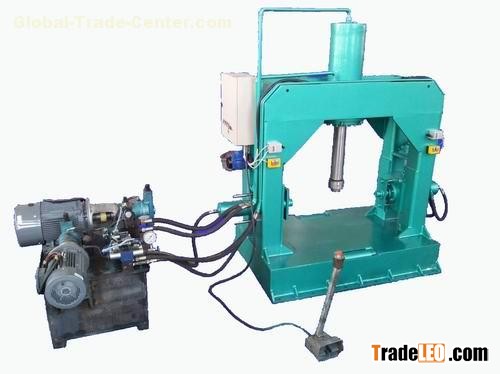

This Machine is one of High mast pole machine used for assemble and straightening the pole. Big High mast pole / power transmission pole normally is welded with two or more pieces. First we shall joint the pieces together, and then do spot welding to form into pole shape on this machine. The machine is also used for adjust the roundness of pole.
TECHNICAL PARAMETERS
| No. | Item | Unit | Value |
| 1 | Model |
| HJZ-1000 |
| 2 | Max, diameter of high mast pole | mm | 1000 |
| 3 | Top cylinder Working force | KN | 1000 |
| 4 | Top cylinder Max stroke | Mm | 650 |
| 5 | Max distance from top piston to worktable | Mm | 1150 |
| 6 | Two-side cylinder working force | KN | 300X2 |
| 7 | Side cylinder stroke | mm | 400 |
| 8 | two-side cylinder up/down adjust range | mm | 430 |
| 9 | Hydraulic system Max working pressure | MPa | 25 |
| 10 | Height of worktable | mm | 305 |
| 11 | Column inner distance | mm | 1450 |
| 12 | Total motor power(two motors) | kW | 18.5+5.5 |
| 13 | Gross weight | kg | 4000 |
| 14 | Overall size | mm | 1300*1900*2400 |
