1. ☆ Brief introduction

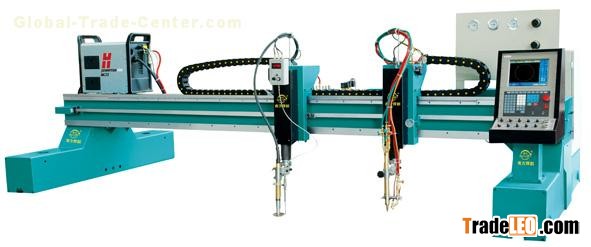

CNC series digital cutting machine is a kind of newly researched and developed efficient automatic cutting equipment for lighting pole production, like light pole base plate, Stiffener. based on absorbing domestic and overseas advanced software and hardware technology and it can perform vertical and horizontal cutting and cutting on any position of arc curve, which is featured with high cutting surface precision and small deformation. The equipment is featured with appropriate structure, easy operation, and advanced technology etc. CNC flame cutting is a traditional thermal cutting method, which is applicable to cut the carbon steel plate with good quality and the cutting thickness is 6-150mm. CNC plasma cutting machine is applicable to cut stainless steel and nonferrous steel with quick speed, good cutting surface roughness, high precision and small deformation. It is a best choice to get the higher quality of cutting metal material. CNC cutting machine is widely applicable to the automobile, shipbuilding petrochemical industry, boilers, pressure vessels, construction machinery, light industrial machinery and other industries.
2. ☆ Basic components
| Track gauge | 3500mm |
| Rail length | 8000mm |
| CNC system | Adtech HC-6500 (China) |
| CNC Flame cutting torch | 1 set |
| CNC Plasma cutting torch | USA Thermadyne CUTMASTER A120 |
| Auto Ignition | 1 set |
| Plasma source | 1 set |
3. ☆ Function components
| Capacitance height controller | Hongyuda 1 set (China) |
| Arc voltage height controller | Hongyuda 1 set (China) |
| Program nesting software | FastCAM Professional Version (Australia) |
4. ☆ Main technical specifications
| Effective cutting width | 2700mm |
| Effective cutting length | 6000mm |
| Max. Return Rate | 6000mm/min |
| Straight line positioning precision | ±0.5mm/10m |
| Straight line repeat precision | ±0.5mm/10m |
| Roughness of cutting surface | Ra12.5 |
| Max. flame cutting thickness | 6-300mm |
| Flame perforation thickness | 80mm |
| Max. Plasma quantity cutting thickness | 16mm for MS |
| Max. Plasma perforation thickness | 16mm for MS |
| Max. plasma edge cutting thickness | 35mm for MS |
| Rails | 24KG |
| Drive mode | Double driven |
5. ☆ Working environment
| Environmental temperature | 0-45℃ |
| Humidity | <90%, no condensation |
| Surroundings | Ventilation, no big shake |
| Input voltage | Single phase,220V, 50HZ Three phases, 380V, 50HZ |
| Input power | 2000W |
| Cutting oxygen pressure | 0.784-0.882M |
| Preheating oxygen pressure | 0.392Mpa |
| Fuel gas pressure | 0.049Mpa |
