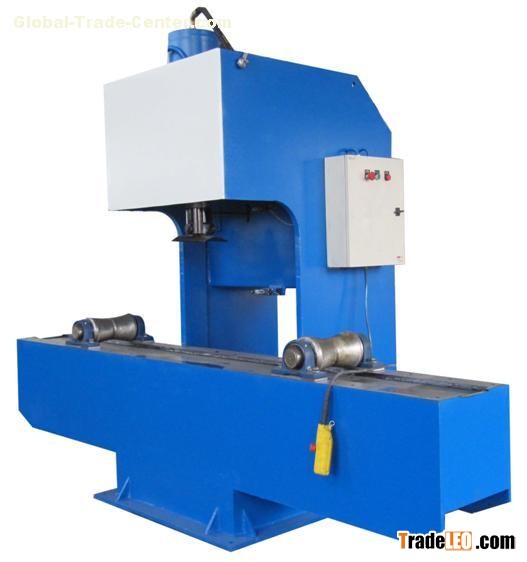

POLE STRAIGHTENING MACHINE MODEL: JZ-63-3000
1. Application:
it is for straightening the street light pole and high mast after welding and Hot Dip Galvanizing process.
2. Technical parameter
| TECHNICAL PARAMETER 主要技术参数 | |||
| Name 项目 | Unit 单位 | Value 数值 | |
| Max. Pole diameter最大灯杆直径 | Mm | 400 | |
| Min. Pole diameter最小灯杆直径 | Mm | 58 | |
| Nominal working pressure标称工作压力 | KN | 630 | |
| Length of worktable 工作台长度 | Mm | 3000 | |
| Distance between Housing 墙板间距 | Mm | 840 | |
| Throat Depth 喉口深度 | Mm | 420 | |
| Stroke油缸行程 | Mm | 400 | |
| Max. Open Height 最大开启高度 | Mm | 510 | |
| Main Motor （for Pump） | Rotate Speed旋转速度 | r/min | 1440 |
| Power功率 | KW | 7.5 | |
| Overall Dimensions | Length长 | mm | 3000 |
| Width宽 | mm | 1260 | |
| Height高 | mm | 2230 | |
