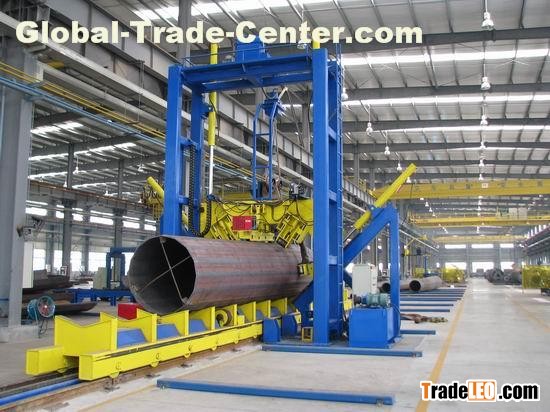

The machine is mainly used for High mast pole / power transmission pole welding. With PLC controller, the machine can automatically hold the pole body (the pole body can be 2 or more pieces plate welded) and weld automatically. The pole slop rate can be programmable according to design. For high mast pole / power pole’s big thickness plate welding, submerge welding is applied.
| Item | Particulars | |
| 1 Technical Specifications (JHMH 1800) | ||
| 1.1 | Pole Diameter | 230—1800 mm |
| 1.2 | Pole Length | 12 M |
| 1.3 | Plate Thickness | 5—20mm |
| 1.4 | Material Grade | Info Not Available |
| 1.5 | Pole Shape | Circular/ Polygonal & Tapered (12、14 & 16 and above) |
| 1.6 | Tape | ≤ 5.00% |
| 1.7 | Welding Speed | 0.3 to2 M/min |
| 1.8 | Moving speed of carriage | 10 M/min |
| 1.9 | Welding Torch | Pole underneath the torch |
| 1.10 | Welding Direction | Big to small diameter |
| 2 Mechanical System | ||
| 2.1 | Welded steel rack/structure | Q235 |
| 2.2 | Vertical clamp unit | 4 Vertical |
| 3 Welding Device | ||
| 3.1 | Type | Two wire submerged arc |
| 3.2 | Brand | Lincoln |
| 3.3 | Model | DC1000+NA-5 & AC1200+NA-4 |
| 3.4 | Welding head/feeder | Lincoln NA-5 & NA-4 |
| 3.5 | Power source | DC1000 & AC1200 |
| 3.6 | Number of welder | Two |
| 3.7 | Number of wires | Two wire |
| 4 Hydraulic system | ||
| 4.1 | Quantity | 1 |
| 4.2 | System | Valve (Hoerbiger & Huadeyeya) |
| 4.3 | Type | Motor (Siemens) |
| 4.4 | Pump | Axial piston variable displacement |
| 4.5 | Power | 5.5 Kw |
| 4.6 | Voltage | 415 V |
| 4.7 | Frequency | 50 Hz |
| 4.8 | Maximum pump setting | 16 Mpa |
| 4.9 | Cooling system | A |
| 5 welding flux recycle system | ||
| 5.1 | PLC | Siemens |
