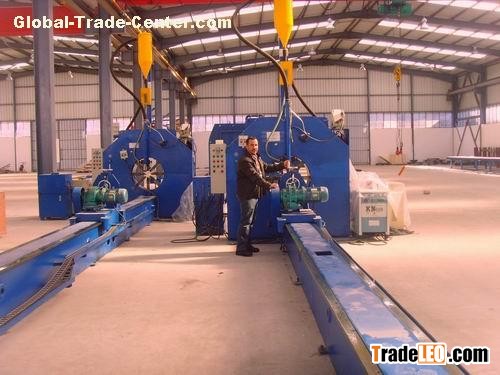

APPLICATION: FOR AUTOMETIC WELDING LIGHT POLE MAX LENGTH 14000MM
LPW-450/14000 is suitable for one piece type polygonal and circle taper light pole. it is automatic welding line, the dolly with speed adjustable motor can pull (or push) the light pole from small end to big end, The hydraulic cylinder through mechanical chain, worm wheel push the clamping wheel to close the pole and do welding at same time.
The machine includes the following items:
1. Long working table (16M) with rack for pulling dolly.
2. Rear support for the pole, with guide rail
3. Pole main shut-weld unit (hydraulic clamping and welding unit, including 3 sets clamping wheels for polygonal and circle pole)
4. Submerged Arc Welding system, including welding wire feeding system.
5. The flux recovering system
6. hydraulic system
| TECHNICAL FEATURES | |||
| 1 | Workable Diameter | 60-450mm, | |
| 2 | Workable length | 14000 mm | |
| 3 | Dolly length | 1500 mm | |
| 4 | Suitable light pole Thickness | Light pole diameter: 60~450mm | Max.thickness: 4mm |
| Light pole diameter: 250~450mm | Max.thickness: 6mm | ||
| 5 | Power of Motor for Pump | 4 KW | |
| 6 | Power of Motor for pulling dolly | 4 KW, AC speed changeable type. | |
| 7 | Welding Machine | 630A, (Submerged Arc Welding) | |
| 8 | Welding wire diameter | 1.6~2mm welding wire, according the pole thickness to do selection | |
| 9 | Working Speed | 1.1~2m/min (Note: different thickness speed will be different) | |
| 10 | Gross weight | 7000 kg | |
| 11 | Overall sizes (mm) | 24000x2000x2000 mm | |
