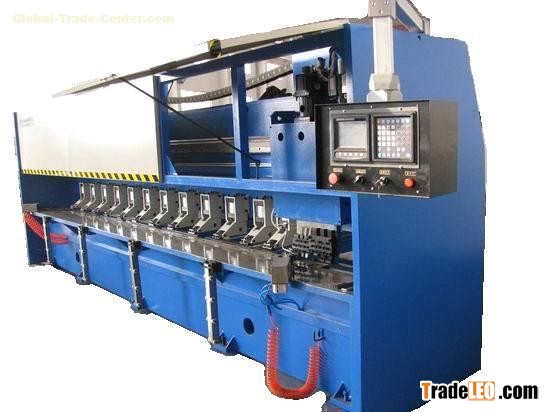

● SVG-type v groove machine is an upgrade of the traditional V groover, the machine has all the advantages of conventional models, but also combines the latest international V cutting machine technology, meet the actual needs of domestic customers.
● SVG-type V groove machine with automatic back gauge feeding structure, beams fixed and working table can be replaced, completely solve the problem of the worktable surface deformation, ensuring the table surface flatness of ± 0.03mm. the .cutting accuracy is improved.
● extend the life of the V groover. Owing to the adoption of carbon tool steel table, hardness after quenching is up to HRC55-60, surface hardness is greater than the hardness of stainless steel plate. so table wear is less, and there are two faces can change. It completely solved the table deformation because of low hardness surface.
● improve work efficiency. Using powerful gear motor on V cutting, two high speed cutter + three alloy cutter, max groove depth can be up to 1.2mm thickness. Cutting efficiency than conventional models increased by 5 times. It’s the most developed V grooving machine.
| No. | Parameters | Value |
| 1 | V Grooving thickness of sheet | 0.6mm-4mm |
| 2 | V grooving length of sheet | 5000mm |
| 3 | V grooving width of sheet | 1220 mm |
| 4 | V cutting speed | 15m/min-60m/ min |
| 5 | single blade cutting area | 2.25㎡ |
| 6 | feeding speed | 2m/min-0m/ min |
| 7 | Y axis minimum setting unit | 0.01 mm |
| 8 | Y axis minimum positioning accuracy | ±0.05 mm |
| 9 | Z axis minimum setting unit | 0.01mm |
| 10 | Z axis minimum positioning accuracy | ±0.03mm |
| 11 | X axis variable frequency motor power | W=4Kw |
| 12 | Y axis servo motor power | W=1Kw |
| 13 | Z axis servo motor power | W=1Kw |
| 14 | air source pressure | 0.4Map-0.6 Map |
| 15 | maximum groove depth | 2.5mm |
| 16 | Overall size | 6800mm*2200mm*2100mm |
