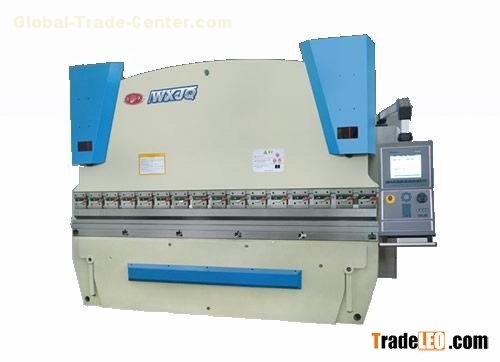

• European CNC hydraulic press brake controller with complete bending computations and tool library
• Ideal for multi-bending of complex sheet bending forms, as well as for volume production which require constant repeatability
• CNC Hydraulic Press Brake Bend accuracy and repeatability much higher than a conventional press brake
• Fully synchronised Y1-Y2 axes to ± 0.01mm via proportional valves and precision linear scales
• Very fast AC servo backgauge (X) system controlled by CNC
• High stroke and daylight values
• Two front arms with front gauge, can slid on T slot
• Side and rear safety gates (electrically interlocked and/or light or laser guarded)
• Compactly-wired PLC electrics in ventilated cabinet
• Ram travel fully supported in low friction slideways

• Automatic hydraulic press brake working table crowning system controled by CNC
• European hydraulic system

• Oil tank level / temperature indicator

Axes Definition of CNC hydraulic press brake

1. Y, Y1, Y2 : Y axis is ram hydraulic bending depth control. for CNC hydraulic press brake, left / right cylinders can be controlled separately. We call them Y1, Y2. Our CNC Hydraulic press brake is equipped with german made optic scaler, HEIDENHAIN, with higher accuracy and reliability.

2. X, X1, X2 : back gauge can be a complex system for sheet metal back stop. For CNC hydraulic press brake or NC hydraulic press brake, X axis is basic. back stop can move forward / backward. X1, X2 axis means two back gauge finger can move separately. normally two back gauge finger will be enough.

3. R, R1, R2 : Sheet metal workpiece can be formed in 3-D shape. The CNC hydraulic press brake back gauge will need to move up or down to stop workpiece according to design.

4. Z1, Z2 : with previous explanation of axes, it will be easy for the Z axis. Z1, Z2 can move separately along the back gauge beam. It is because our workpiece may need to be positioned according to different point. and for CNC hydraulic press brake, we can install different tooling in different section along the working table. the Z1, Z2 can stop part according to tooling setting.

Main components of CNC hydraulic press brake:
