Brand:TIANDU
Model:PZ1000/PZ1600
MOQ:1 Sets

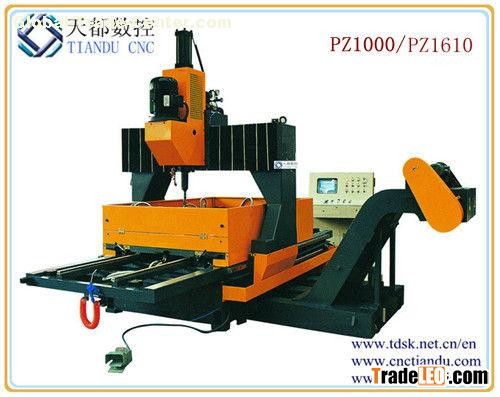

PZ Series CNC Plate Drilling Machine PZ1000/PZ1600
Product Application:
CNC flange drilling machine used for the drilling processing of tube plate, clapboard of heat exchange, condenser, evaporator, air-conditioner, boiler and chemical industries.
Product Features:
1.Servo slide drilling unit head, with the function of drilling holes, reaming, chamfer angle, milling of groove.
2.Automatically find pot to dril holes in X,Y axis, spindle rotation speed and feed velocity are stepless adjustment.
3.T-groove is set on lathe bed, using pressure plate to clamp work piece
4.To seek work piece center in hand-operated wheel, thimble.
CNC, PLC systems, CRT display,
5.Programming software based on WINDOWS platform with CAD connection, fast and convenient programming, and visual previewing.
6.Automatic chip removal, coolant circulation cooling
7.Capable of switching automatically spindle rotation and feed velocity when processing composite material
8.Key machinery, hydraulic pressure, electric components are chose from famous cooperation domestic and abroad
9.Optimized integration design for complete machine, no foundation requirements.
10.First choice equipment of tube plate drilling in heat exchange, chemical industry.
Product Parameter:
| Model | PZ1000 | PZ1600 | |
| Size of work piece
| Thickness | Max.100mm | |
| W×L | 1000mm×1000mm | 1600mm×1600mm | |
| Spindle
| Dia.of drilling bit | Max.Φ50mm | |
| Rotation speed | 50~1000r/min | ||
| Clamping work piece | Hand movement | To press in T-groove pressure board | |
| Drilling precision | Same side | ±0.2mm | |
| Cooling | Mode | Automatic cycle | |
| Capacity | 240L | ||
| Hydraulic pressure | Clamping force | 5MPa50kg/cm2 | |
| Capacity of oil tank | 60L | ||
| Motor | Spindle | 5.5KW | |
| Tatal power | 12KW | ||
| Dimension of machine | L×W×H | 3400×2000×3100mm | 4000×2550×3100mm |
| Weight of machine |
| 5000kg | 8000kg |
