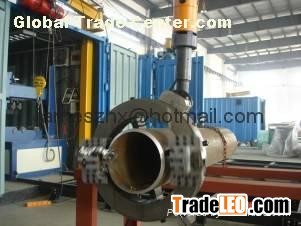

Movable Orbit-type Pipe Cutting & Beveling Machine
 Model: MPCBM-42A/36A/30A/24A/18A/12A/06A
 Performance features
 Online-performance: （designed as per the one line equipment of non production line)
 Beveling Capacity: ≤8Min /pipeline bevel (DN200 SCH40)
 Bevel cutting: cutting a pipe with other equipment such as band saw and then machining each bevel. It is also could be used to cut pipe
 Bevel quality: good
 Mobility: very good
 Application: for cutting small amount of pipes with common wall thickness and beveling the endＶ-shape bevel.
 Price: lower than the Fixed-type Radial Pipe End Beveling Machine
 Technical parameters
 Pipe diameter applicable: φ870～1050/φ720～900/φ570～750/φ420～600/φ270～450/ φ120～300/φ30～150
 Applicable wall thickness: 25
 Materials applicable: carbon steel, alloy steel, stainless steel and cryogenic steel,ect.
 Bevel Shape: V
 Rev: 13r/min
 Clamping system: Multi～blade circular track; clamped and fixed with screw
 Cutting speed: 0.10 mm/n
