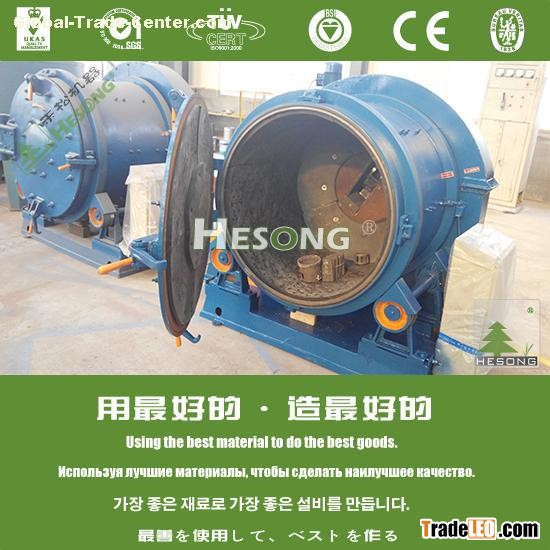

Automatic Rotary Drum Blasting Machine

 Feature

Q31 series Drum Type Shot Blaster is designed for Shot Blast Cleaning of small or medium size iron, steel, alloy and non-ferrous castings, forgings, heat treated parts.

1.Construction of Q31 series Drum Type Shot Blaster

2.Put the cleaning workpiece into the barrel and close the end-cover, adjust the cleaning time. Firstly, move the semi-nut needle to the desired position and the start the machine in turn. After the barrel rotating, the helical

3.Ribs on the protecting board tumble the castings continuously to make each surface cleaned evenly. Through the hole, the abrasive flows into the middle-wall, then through the screw belt conveying to the box-shaped

4.frame via elevator carrying to the top of the separator. Screw such big core-sand and burrs,etc. the small sand, dust and abrasive are carried away by the airflow. The integrity shot flows into the blast wheel for continuous usage.

Why you choose us

there are many experienced engineers to consider every possibility for customers.
There are 50 years experience for making shot blasting machine in China
Them has over 25 years knowledge of shot blasting technology.Our machines are designed using 3D,show every design details in face of you.
Experienced technicians for production, installation, commissioning & service.
All machining parts out sourced from professional CNC machining company with strict quality control procedure.
Our company has passed ISO 9001:2008 certified,we can offer OE service.

Technique  parameter:

number	Type Item		Q3113BI	Q3113BII	Q3110BI	Q3110BII
1	Diameter of rolling drum	mm	Φ1300	Φ1300	Φ1000	Φ1000
2	Loading capacity	kg	600	600	300	300
3	Productivity	kg/h	2500-3500	2500-3500	600-1500	600-1500
4	Power(excluding dedusting)	Kw	14.5	16.3	9.7	11.9
5	Maximum weight of workpiece	kg	30	30	15	15
6	Rotational speed of rolling drum	r/min	2.5	2.5	3	3
7	Abrasive flow rate	kg/min	160	160	120	120
8	Ventilation capacity	m3/h	2000	2800	800	2000
9	Dedusting efficiency	%	85	99	85	99
10	Outline dimensions	mm	2550*2341*2250	4362*2341*2250	2078*2458*1861	3870*2458*3370   Contact Infomation Send Inquiry Company name:QINGDAO HESONG MACHINE CO., LTD. Status:[Offline] [Send message] [Chat] Business contact:wangzengfang (Ms.) Telphone: Mobile: Fax: Area: Caribbean Region-Bermuda Address:Feiyu Road, Jiaonan, qingdao,china Zip:266400
