Brand:PFL

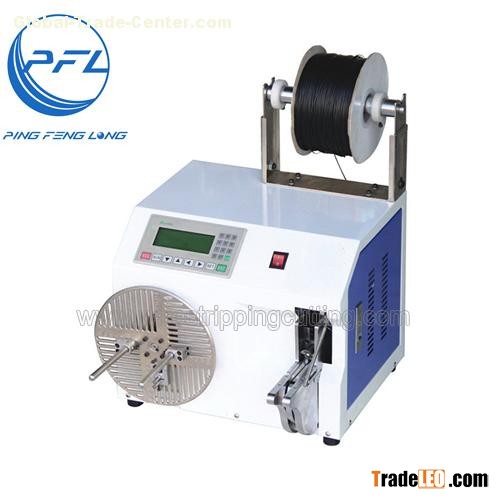

Model:PFL-1080
MOQ:1 Pieces
Send Inquiry
Features:
1.Cost-effective:It is 3 times more than manual winding and tied wires.Reduce labor cost and improve
working environment and strength.
2.Simple operating and practical:It uses PLC program control,it's easy and fast to set the parameters.
It will statistics the output automaticlly to save the counting by workers.
3.Using scope:The equipment is suitable for USB cables,mouse/keyboard cables,headphone cables,AC/DC
power cables,network cables,telephone lines,and other types of signal transimission lines.
Specification:
| Power Supply: | AC220V±10% 50Hz/60Hz | |
| Power Rating: | <200W | |
| Wire Tied Speed: | 0.8s/pc,66~75pcs/min | |
| Winding Speed: | 2-8circles/s,adjustable | |
| Available Bundled Inside Diameter: | 5-30mm,(Customized to max55mm) | |
| Available Cable Ties Range: | 90--150mm,Customized(according to customer demand) | |
| Measurement: | 500*300*350mm | |
| Height of Material frame | 200mm~240mm | |
| Weight: | 55kg | |
