Brand:PFL
Model:PFL-919
MOQ:1 Pieces
Features:

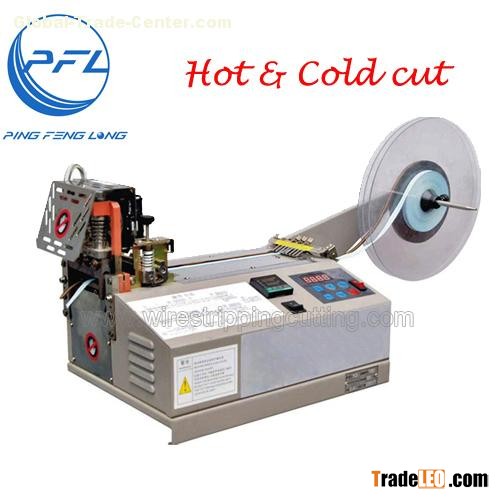

Automatic Full Computer Tape Cutting Machine
Adopt 18 digital display,16 function key,11 light coupling input,4 cut-off protector,1 servo motor pulse output technology.
It is a kind of numerical control equipment.
1.Easy operation,it can cut automaticlly once set up the cutting length and quantity.
2.Self protection function,it will stop automaticlly if the materials run out during the operation.
3.High speed,100-120 pcs per minute(50mm length for example)
4.High accuracy,the cutting length is accurate according to a stepping motor.
5.Hot cut and cold cut knives,it can turn easily between the two cuttig modes.
Apply for:
Widely used in clothing industry,luggage industry,various daily leisure products industry.
Specification:
| Available Tape Width: | 5～100mm | |
| Available Cutting Length: | 5～9999mm | |
| Tape Cutting Speed: | 100～120Pcs/Min | |
| Cutting Tolerance: | ≤0.5mm | |
| Cutting Type: | Hold and cold knives,Straight cut | |
| Knives temperature: | Max 350 degree,Adjustable | |
| Power Supply: | AC220V 50Hz,500W | |
| Available Materials: | Nylon/fabric tapes,plastic/metal zippers,leather,aluminum platinum,PVC tubes,PS material etc. | |
| Measurement: | 450*350*350mm | |
| Weight: | 28kg | |
If anything I can do for you,please contact me any time!
