Brand:Runhe
Model:-
MOQ:-0 -

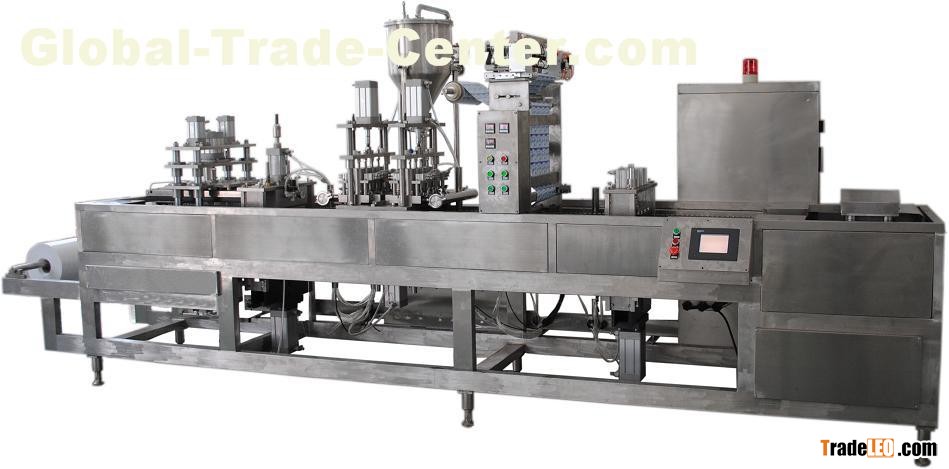

This machine is one packaging machinery belongs to our factory for independent innovation development and production , suitable for free flow liquid filling sealing ,such as jam, chocolate cream, butter, Ketchup, etc.; Also suitable for cookies, candies, tablet, capsule filling.
The machine adopts PLC control , AC vector motor with frequency control, easy operation. Working process from automatic vacuum forming → automatic filling→ automatic sealing, →printing date→ automatic cutting→ output finished product, all are fully automatic operation.
The machine with photoelectric device,make sure the sealing ,cutting are tidy and beautiful.
suitable for sheet material :PVC, PS, PET.
Main technical parameters
| The biggest forming area and depth | 160×250×24mm |
| Standard mould | 80×57mm（according to user requirements） |
| Sealing and cutting speed | 3600-15000times/hour |
| Range | 40-160mm（according to user requirements） |
| Sheet size | 0.15-0.5×250mm |
| Main motor power | 1.5KW |
| Electric power | 3N-50Hz 380V/220V |
| Air press | 0.4-0.6MPa |
| Air Consumption | ≥0.3㎡/min |
| Mould cooling | tap water or recycling water |
| Dimension（L×W×H） | 4000×750×1800mm |
| Total weight | 1600kg |
Sample
