Packaging Machinery

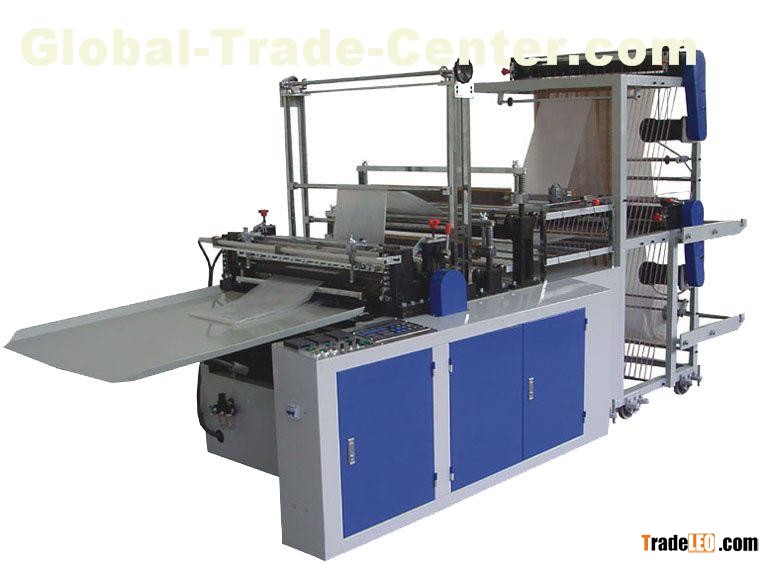

Heat-sealing & Heat-cutting Bag-making Machine(2 lines)
2016-10-02 17:21  Views:128
Price:0.00 USD/Sets
Brand:Chengheng
Model:CHZD- 600/750A
MOQ:1 Sets
Send Inquiry

The Closest Service:

1.Free installation and ajustment.(for consumers purchase more than $100000 only)
2.One year free after-sales service and mechanical  parts lifetime warranty.
3 We will offer the professional answer and parts about relating machines in 48 hours on line .

Purpose

This bag making machine is used to produce high/low pressure vest bags (supermarket shopping bags), flat-rim bags (garment bags and shoe bags)and disposable medical bags, etc. ( Additionally equip winding machines and point-cutting knife dual-use device to produce point-cutting garbage bags).

Performance & Feature

1. The whole machine adopts the microcomputer to control and the stepping motor to load materials respectively (servo motor control system is optional).

2. Arbitrary fixed-length, accurate and smooth photoelectric tracking, automatic stop in printing failure and photoelectric control to feed materials.

3. Automatic counting and arbitrary setting alarm

4. Automatically constant temperature to ensure firm and flat sealing

5. It can produce bags in 2 lines with no need of printing.

Main Technical Parameters



Model

CHZD-600A

CHZD-750A

CHZD-1000A

Max.width of bag making

550mm

650mm

960mm

Max.length of cutting

999mm

1200mm

120mm

Production capacity

30~180 /min

30~180 /min

30~90 /min

Total power

4.2kw

4.5kw

5kw

Machine weight

750kg

900kg

950kg

Overall dimension

3300*1040
*1600 mm

3300*1140
*1600 mm

3300*1240
*1600 mm
