Brand:BEIYA
Model:BW-2500C
MOQ:1 Sets
1. Work flow:
Put cardboard into carton holder (manually) -- Bottom preforming -- Bottom heating and sealing -- Ultrasonic capping (Optional) -- Filling -- Top preforming -- Top heating and sealing -- Date printing -- Finished product
The whole process is controlled by PLC, and only need one person to operate.
2. Suitable for filling:
Various kinds of sauce, wine, spices, cleaning solution, liquid chemical product, etc
3. Technical parameter:
1. Capacity: 250--1000ml (can be filled by one machine)
2. Output: 1800-2500 cartons/hour

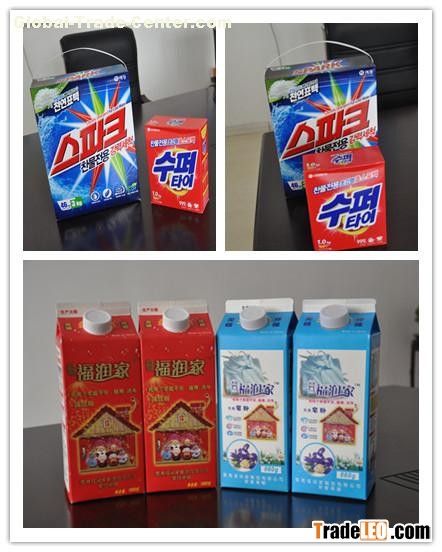

3. Packing material: Cardboard carton / aluminium foil carton
4. Shelf life: Depend on different product and different process
5. Capping: With capping (Optional)
6. Filling temperature: Hot filling: 88-92 degC / cold filling: 2-50 degC
7. Overall power: 25KW (three phases of electricity)
8. Compressed air pressure: 1.0-1.4 Mpa, Flow rate: 1.4
9. Cooling water: Flow volume: No less than
10. Size: (L*W*H):
11. Net Weight:
12. Installation requirement: Any smooth floor, such as cement, floor tile, plastic ground, etc. Do not need to make angle.
4. Payment terms
1)T/T : 30% as deposit , 70% balance before shipment
2) L/C at sight
5. Delivery time
1) For automatic filling machine 90 days
2) For semi-automatic filling machine 60 days
3) For manual filling machine 45 days
6. After Sale Services
Shenyang Beiya Beverage Machinery Co.,Ltd will supply 12 months guarantee for all the equipments, and if customer need, we will send our technicians to customers’ factory, install the machines and train customer's staff to operate the machine. we will supply all the spare parts with cost price if customer need.
