1.1 Range of bottle capacity: 350--1500ml

Range of bottle diameter: φ50—φ92mm

Range of bottle height: 140--330mm

Inner diameter of the bottleneck: φ20--φ30mm

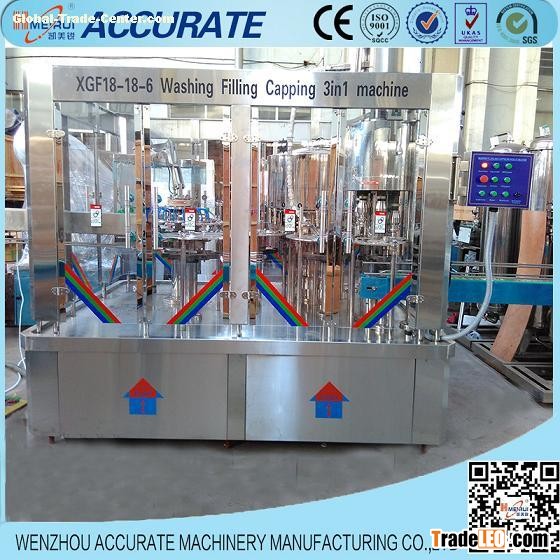

1.2 Variety and specification:   XGF 18/18/6

X ---- Washing Machine    G ---- Filling Machine   F ---- Capping Machine

1.3 Equipment composition and introduction of structure

Composition  ——(washing)  , ——(filling)   ——(capping)  ,——(Air driving)

Body machine ——(electric) ,  ——(electric box) ,   ——(working platform),  ——(main transmission) , ——(frame) ,   ——(Chain box and entering and exiting arc board)

1.4 Technique characteristics:

Valve quantities of filling: 18 heads    Heads of capping: 6 heads     Heads of washing: 18 heads

      Capacity: 350 & 500ml  6,000b/h-- 7,000b/h

      Can suits for your different bottle size, no need change mould if the bottle neck is same

1.5 Input Power:

Main power: 2.2KW ,  Washing pump:0.37kw,  Filling pump:0.75kw

Cap unscrambler:0.25kw ,  Air blower: 0.75kw,  Conveyor motor: 0.37kw

Automatic cap loader: 0.8kw ( motor 0.25kw, air blower:0.55kw)

Working Voltage AC: 380V 50HZ, 3 phase

1.6 Water Consumption: (aseptic water) ≈ 2m3/h         Water Pressure:0.2-0.4 Mpa

1.7 Dimensions: LxWxH 2520x2100x2250mm            Weight of equipments ≈2800Kg

1.8 Conveyor system

The working efficiency of the production line is largely decided by the conveying system. When there is occasional stop on the downstream packaging system (e.g. label change), the forepart of the production line cannot be effected. At the same time, the transferring system must connect the equipments in the forepart and rear part well. product is of good rigidity, light weight and good exchanging ability. It is applied for bottles whose diameter is φ40~φ110 mm.

e:n� � >s �k�=EN-US style='font-size:11.5pt;font-family:Arial;color:black;mso-font-kerning: 0pt'>Automatic cap loader: 0.8kw (motor 0.25kw, air blower: 0.55kw)

Working Voltage AC: 380V 50HZ, 3 phase

1.6 Water Consumption:   (aseptic water) ≈ 1m3/h

             Water Pressure: 0.2-0.4 Mpa

1.7 Dimensions:  LxWxH 2000x1500x2200mm

     Weight of equipments ≈1800Kg

Quotation include: washing filling capping 3-in-1 machine, infeed conveyor 2meter long, outfeed conveyor 4meter long.
