1.1 Range of bottle capacity:   200--1500ml

   Range of bottle diameter:  φ50—φ92mm

   Range of bottle height:     140--330mm

   Inner diameter of the bottleneck:   φ20--φ30mm

1.2 Variety and specification:

X ---- Washing Machine

G ---- Filling Machine

F ---- Capping Machine

XGF nth="8" w:st="on" year="2008">8/8/3

1.3 Equipment composition and introduction of structure

Composition    ——(washing)      ——(filling)

——(capping)      ——(Air driving)

        Body machine    ——(electric)            ——(electric box)

  ——(working platform)   ——(main transmission)

                        ——(Chain box and entering and exiting arc board)    ——(frame)

1.4 Technique characteristics:

Valve quantities of filling:  8 heads

Heads of capping:  3 heads

Heads of washing:  8 heads

Capacity: 500ml: 2000-3000b/h

         1000ml: 1000-2000b/h

Suitable machine for volume 200ml up to 2000ml

 Can suits for your different bottle size, no need change mould if the bottle neck is same.

1.5 Input Power:

Main power: 2.2KW, Washing pump: 0.37kw

Filling pump: 0.55kw, Cap unscrambler: 0.25kw

Air blower: 0.75kw,   Conveyor motor: 0.55kw

Automatic cap loader: 0.8kw (motor 0.25kw, air blower: 0.55kw)

Working Voltage AC: 380V 50HZ, 3 phase

1.6 Water Consumption:   (aseptic water) ≈ 1m3/h

             Water Pressure: 0.2-0.4 Mpa

1.7 Dimensions:  LxWxH 2000x1500x2200mm

     Weight of equipments ≈1800Kg

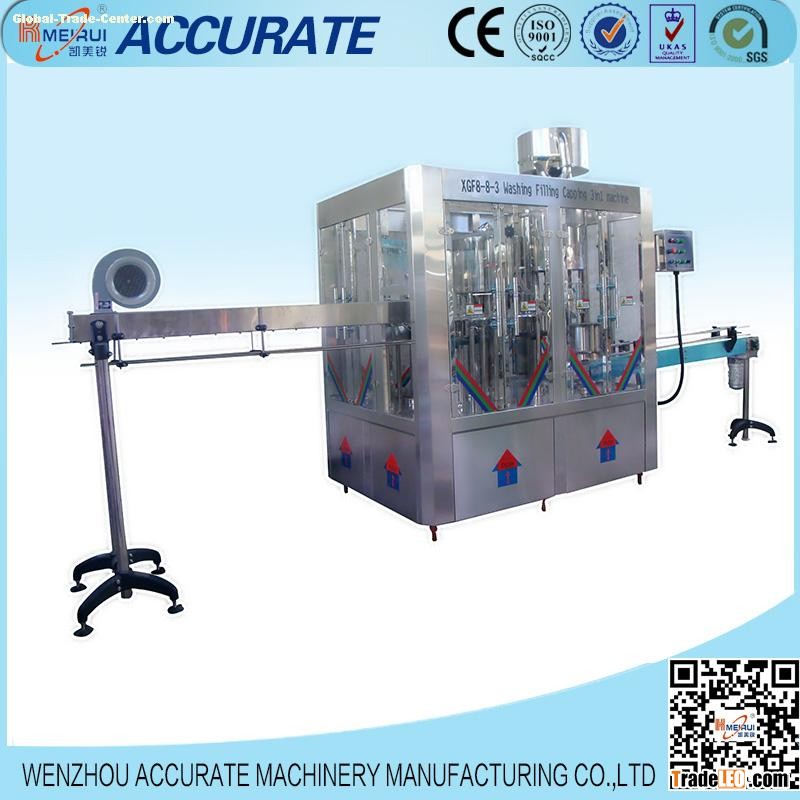

Quotation include: washing filling capping 3-in-1 machine, infeed conveyor 2meter long, outfeed conveyor 4meter long.
