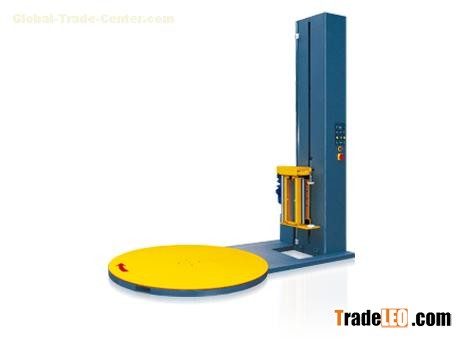

Model

DT1650F

Wrap size(L×W)

(500-1200)mm×(500-1200)mm

Wrap height(max)

L type:1800mm      H type:2400mm    Y type:2800mm

Wrap efficiency

20-40 Pallets/Hour

Turntable speed

0-12rpm Adjustable turntable speed

Turntable diameter

1650mm

Turntable height

78mm

Turntable weight capacity (max)

2000kg

Film carriage

Power pre-stretch system up to 350% with adjustable speed

Lift system

Double chain structure，lift speed adjustable

Control system

PLC control,wrap layers adjustable,Turntable automatically reposition,photo-eyes auto-height sensing

Total weight(max)

500kg

Machine size

2745mm X 1650mm X (2270-2870)mm

Power/voltage

Turntable:0.75kw  Film carriage:0.35kw  Lift system: 0.37kw`/AC220V

Top plate(optional)

Motor-Driven

Ramp(optional)

Custom made
